No.101-H TABER TYPE ABRASION TESTER

No.101-H
TABER TYPE ABRASION TESTER

Inquiry Form

Overview of TABER TYPE ABRASION TESTER

This tester is used to evaluate the abrading endurance of flat surface materials when they are abraded with an abrading wheel.

The operator is to place the abrading wheel to the rotating test specimen at a prescript load and abrade the test specimen.

After the test is finished, the operator is to measure the abraded mass, volume, thickness, and the optical difference of the test specimen.

This tester is widely used in testing plastic, rubber, decorative sheet, leather, paper, and paint surface.

TABER TYPE ABRASION TESTER

Reference Standards

JIS A1453、（K5400）、K5600-5-8/9、K5665、K6264-2、K6404-4、K6902、K7204、（L1018）、L1085、L1096、ASTM D1044、TAPPI-T476、JAS、（JASO-M403）、ISO 4649、5470-1、7784-1/2、9352

Specification

Specifications are subject to change without notice.

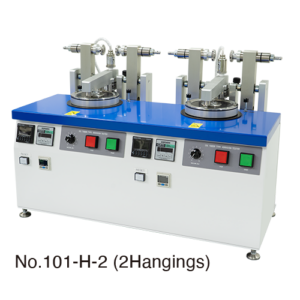

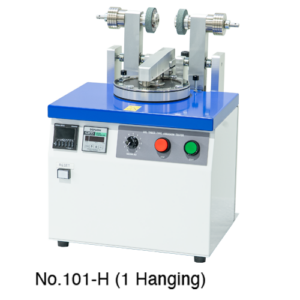

ModelNo.101-H-1No.101-H-2

Turntable

Diameter 150 mm, sample holding ring (screw type)

Rotational Speed

Adjustable via motor speed controller 60 ± 2 rpm, 70±2 rpm, 72±2 rpm

Test Load

2.45 N (250 gf), 4.9 N (500 gf), 9.8 N (1,000 gf)

Counter

6-digit preset counter

Vacuum System

One vacuum cleaner

Two vacuum nozzles (inner φ8 mm), with height adjusting mechanism

Suction force control knob

Two vacuum cleaners

Two vacuum nozzles (inner φ8 mm), with height adjusting mechanism

Suction force control knob

Safety Devices

Motor overload protection circuit, circuit protector (main power)

Accessories

Abrading wheels (1 set), rubber mat (t2 mm), nozzle height gauge (t1.5 mm, 1set)

Abrading wheels (2 sets), rubber mat (t2 mm), nozzle height gauge (t1.5 mm, 1set)

Options

Turntable φ130 mm specification, sample outer circumference holding ring (split-clamping collar type)*1 , vacuum sensor (digital display), safety cover with interlock

Power Source

AC 100 V, 1-phase, 15 A, 50/60 Hz

AC 100 V 1-phase 20 A 50/60 Hz *Requires 2 sockets.

Dimensions and Weight (Approx.)

W370×D350×H450 mm, 25 kg

W710×D370×H450 mm, 50 kg

*1 For diameter 130 mm only.

Inquiry Form

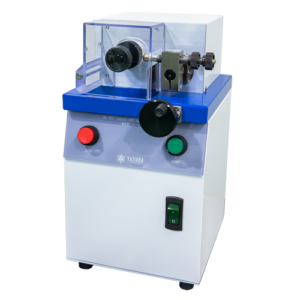

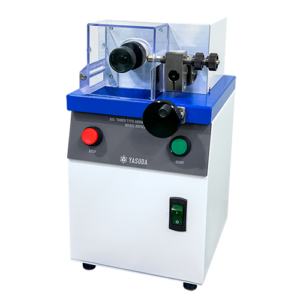

No.101-K
WHEEL REFACER (FOR TABER ABRASION WHEELS)

Inquiry Form

Specification

Specifications are subject to change without notice.

Refacing Tool

Diamond tool

Wheel Rotational Speed

1,300–1,500 rpm (50 Hz)

1,550–1,800 rpm (60 Hz)

Power SourceAC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions and Weight(Approx.)

W210×D330×H380 mm, 10 kg

Inquiry Form

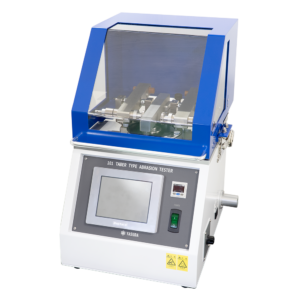

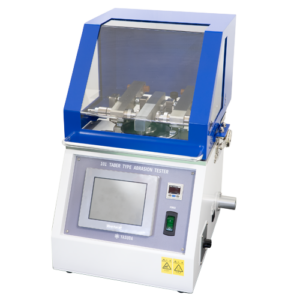

No.101-HS TABER TYPE ABRASION TESTER

No.101-HS
TABER TYPE ABRASION TESTER (WITH VACUUM FLOW METER)

Inquiry Form

Overview of TABER TYPE ABRASION TESTER (WITH VACUUM FLOW METER)

This is a tester with Wind Meter attached to No.101-H TABER TYPE ABRASION TESTER.
It sucks the abraded scrap during the test.
Not only that, it measures the air flow while sucking so it enables to have more precise test result.

Reference Standards

JIS A1453、（K5400）、K5600-5-8/9、K5665、K6264-2、K6404-4、K6902、K7204、（L1018）、L1085、L1096、ASTM D1044、TAPPI-T476、JAS、（JASO-M403）、ISO 4649、5470-1、7784-1/2、9352

OPERATION & MOTION　VIDEO

Specification

Specifications are subject to change without notice.
ModelNo.101-HS

Display and Operation

Touchscreen

Dimensions and Weight(Approx.)

W400×D400×H385 mm, 25 kg

*Refer to No.101-H for specifications not listed above.
*Only a single turntable model is available for No.101-HS.
