Overview of SLIP TESTER

This tester is used to measure the friction coefficient of plastic film and paper according to the inclination method.
By inclining the inclination board at a constant speed, the static friction coefficient can be measured at the tangent at which the test specimen starts to slip.

Reference Standards

JIS P8147

Specification

Specifications are subject to change without notice.
Test Weights	Width 60 mm, length 100 mm, weight 1,000 g
Inclined Plane	Glass plane, effective length of sliding surface 600 mm
Angle of Incline	0–70˚ (analog angle indicator with 0.2˚ increments)
Rate of Incline	1˚/s
Other	Proximity sensor to detect the slide angle
Power Source	AC 100 V 1-phase 3 A 50/60 Hz
Dimensions and Weight (Approx.)	W750×D350×H425 mm, 29 kg

---

Overview of SLIP TESTER (HORIZONTAL METHOD)

This tester is used to measure the friction coefficient of plastic film and paper according to the horizontal method.
The operator is to attach the test specimen to the sliding surface and sliding sled, then pull the sled with a metal wire that is connected to a load cell to acquire the static coefficient of friction and dynamic coefficient of friction.

Reference Standards

JIS K7125、P8147、ASTM D3247、ISO 8295、TAPPI-T816

Specification

Specifications are subject to change without notice.
Test Method	For paper and board	For plastic films
Sled	Width 60 mm, length 100 mm, weight 1,000g	63×63 mm (contact area 40 cm2), weight 200 ± 2 g (1.96 ± 0.02 N)
Moving Table	Width 200 mm, length 380 mm
Test Sample	On the moving table: width 100 mm, length 250 mm Attached to the sled: width 60 mm, length 120 mm	Width 80 mm, length 200 mm, thickness 0.5 mm or below
Frictional Force	Measured by load cell (select one from max. 10 N, 20 N, 50 N)
Table Speed	10.0 ± 0.2 mm/min	100 ± 10 mm/min or 500 ± 10 mm/min
Accessories	―	Reinforcement plate (weight 5 g or below)
Options	Chart recorder, moving table with hot plate, safety cover
Power Source	AC 100 V 1-phase 5 A 50/60 Hz
Dimensions and Weight (Approx.)	W600×D375×H415 mm, 35 kg

---

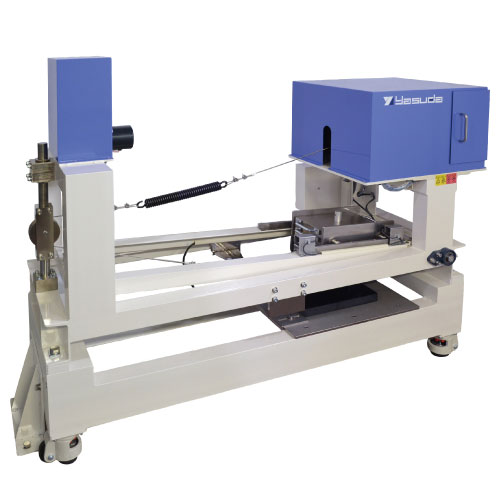

Overview of O-Y PULL SLIP TESTER

This tester evaluates the slippage of floor material.
The coefficient of slip resistance can be measured by the maximum tensile load at the point when the test specimen and the slip head touch each other.
When the test specimen and the slip head touch each other, the slip head is pulled 18° upwards at a prescript load speed to acquire the maximum tensile load for the calculation of the coefficient of slip resistance (C.S.R) As an option, slippage of clay tile can also be tested.
In addition to the usual C.S.R, C.S.R-B can also be calculated.

Reference Standards

JIS A1454、A1509-12

Specification

Specifications are subject to change without notice.
Test Sample	100×120 mm or above (90×135 mm or above for ceramic tiles)
Slider Block	Bottom surface 80 ×70 mm
Vertical Load	Initial load 294 N (30 kgf)–max. 785 N (80 kgf) (Standard load 785 N)
Angle of Pull	18°
Tensile Load	Measured by load cell (max. 5 kN, resolution 1 N) Rate of loading: 785 N/s
PC Software	Available for Windows
Options	Sample holder, accessories for testing ceramic tiles (slider block, software for C.S.R·B calculation)
Power Source	AC 100 V 1-phase 10 A 50/60 Hz
Dimensions and Weight (Approx.)	Tester: W1,610×D580×H1,600 mm, 428 kg Control box: W650×D550×H240 mm, 16 kg

---

Overview of 5 HANGINGS SLIP TESTER

This tester is the digital and 5 hanging version of the SLIP TESTER.
The tester enables the operator to measure the static friction coefficient of 5 test specimens per test.
The static friction coefficient can be shown on the LCD screen and can also be printed out.
The computer system of the tester will also calculate the average static friction coefficient of the 5 test specimens.

Reference Standards

JIS P8147、ASTM D1894、D3248、TAPPI-(T503)、(T542)、T815

Specification

Specifications are subject to change without notice.
Test Weights	Width 41 mm, length 26 mm, weight 150 g × 5pcs
Inclined Plane	Width 320 mm, effective length of sliding surface 325 mm
Angle of Incline	0–70˚ (resolution 0.1˚)
Rate of Incline	1˚/s
Other	Proximity sensor to detect the slide angle
Power Source	AC 100 V 1-phase 10 A 50/60 Hz
Dimensions and Weight (Approx.)	W580×D700×H380 mm, 50 kg
