No.189-PN NOTCHING MACHINE

JIS K7144, ISO 2818

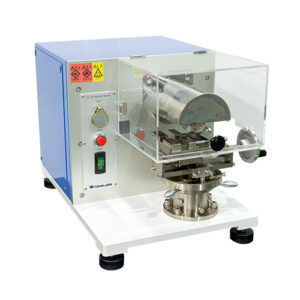

No.189-PN NOTCHING MACHINE

  • This machine is used to make a notch into test specimens that is required for Charpy and Izod impact tests.
  • When replacing the notch knife, the notch knife can be independently taken off to realize low running cost.

OPERATION & MOTION VIDEO

Specification

Specifications are subject to change without notice.
Clamp Opening Max. 40 mm (Standard: 4 mm × 10 pcs), Feed Speed 1.75 mm/ 1 turn
Cutter Rotation Speed (Approx.) 600 rpm (60 Hz), 500 rpm (50 Hz)
Notch Depth Manual, Range 0 to 4 mm (Scale 0.01 mm)
V-Notch Cutter Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm,
Material: High Speed Steel (Option: Cemented Carbide)
Option Pneumatic Clamp, U-Notch Cutter
Power Source AC 100 V, 1-Phase, 15 A, 50/60 Hz
Dimensions/ Weight (Approx.) W420 × D525 × H415 mm, 60 kg

Inquiry Form

No.189-PNA/PNCA NOTCHING MACHINE (AUTOMATIC)

JIS K7144, ISO 2818

189-PNCA

  • Adding the electronic specimen sending system together with side cutting and electronic notch depth adjuster to the usual NOTCHING MACHINE, the automated series provides the operator to conduct optimal notching conditions for impact test samples.

OPERATION VIDEO

Specification

Specifications are subject to change without notice.
Model No.189-PNA No.189-PNCA
Sample Table Manual clamp
Opening Max. 80 mm(Width 4 mm×20 samples)
Sample positioning: Slide type notch centering gauge
Sample hold-down: Screw fixing type
Sample Table Feed

Feed speed: Touchscreen controlled
Setting range: 50–540 mm/min (50Hz), 50–600 mm/min (60Hz)

Cutter Rotation

1 axis (Notch only)
Speed: Touchscreen controlled
Notch: 150–1,780 rpm

2 axis synchronized (Notch & Side cut)
Speed: Touchscreen controlled
Notch: 150–1,780 rpm
   Side cut: 50–593 rpm

Notch

Notch depth: Touchscreen controlled
Setting range: 0–4 mm (in 0.01 mm increments)

Notch cutter

Single-tooth blade (replaceable)
Tip outer diameter: 75 mm
Standard cutter: V-notch cutter (Type A notch, tip angle 45°, tip radius 0.25 mm)

Side Cut Cutting length interchangeable
Available sizes: 63.5 mm / 64 mm / 80 mm / 127 mm
Side cutter Outer diameter: 100 mm、 Blade thickness: 1.6 mm (2 blades per set)
Display & Operation Touchscreen interface
Language options: Japanese / English / Simplified Chinese
 Cutting mode selection (PNCA only): Notch only / Side cut only / Notch & Side cut
 Supports up to 5 notch passes with individually adjustable gradual depth settings
 Store and recall up to 20 sets of processing conditions
 Notch depth offset function
 Alarm display and history check
Safety Features Earth leakage breaker (main power), Emergency stop switch (push-lock type), Motor overload protection circuits (cutter rotation, sample table elevation, table feed), Safety cover (with torque hinges and proximity sensor interlock), Cutter section cover (with torque hinges)
Accessories Notch cutter, Side cutter(PNCA only), Side cut collars(PNCA only)
Options Sample hold-down: Snap-lock type, Safety cover: With torque hinges and electromagnetic safety door interlock
Dimensions/ Weight (Approx.) W660 × D660 × H560 mm, 100 kg
Power Source AC 100 V, 1-phase, 50/60 Hz, 15 A

Inquiry Form

No.189-PFA SAMPLE FORMING MACHINE (AUTOMATIC)

No.189-PFA SAMPLE FORMING MACHINE (AUTOMATIC)

  • This machine enables the operator to prepare dumbbell type test specimens by cutting rigid plastic sheets with 2 spiral cutters.
  • The rotating speed of the cutters, cutting pressure, and the sending speed can be adjusted to provide the operator with optimum preparation of the dumbbell type test specimens.

Specification

Specifications are subject to change without notice.
Spiral Cutter φ25 mm, T25 mm
Cutter Rotation Speed 100 to 1,200 rpm
Pressure Gauge Max. 1 MPa (Scale 0.05 MPa)
Clamp Feed Speed 0.3 to 10 mm/s
Forming Jig To be Specified
Accessories Suction Device (Vacuum Cleaner)
Option Air Compressor
Power Source AC 200 V, 3-Phase, 20 A, 50/60 Hz
Air Source 0.5 MPa or More
Dimensions/ Weight (Approx.) W810 × D620 × H630 mm, 120 kg

Inquiry Form

No.189-PFA-S  SAMPLE FORMING MACHINE (FULL AUTOMATIC)

No.189-PFA-S  SAMPLE FORMING MACHINE (FULL AUTOMATIC)

  • This machine enables the operator to prepare dumbbell type test specimens by cutting rigid plastic sheets with 2 spiral cutters.
  • The rotating speed of the cutters, cutting pressure, and the sending speed can be adjusted to provide the operator with optimum preparation of the dumbbell type test specimens.
  • This model is the full automated version of the SAMPLE FORMING MACHINE, which can cut sheet material into pieces in the dumbbell or rectangle shapes.

Specification

Specifications are subject to change without notice.
Spiral Cutter φ25 mm, T25 mm
Cutter Rotation Speed 1000 to 3,000 rpm
Pressure Gauge Max. 1 MPa (Scale 0.05 MPa)
Clamp Feed Speed 30 to 300 mm/min
Forming Jig To be Specified
Accessories Cutter 1 set ( 2 pcs/set ), Suction Device (Vacuum Cleaner), Air Gun (Built In)
Safety Device Safety Cover, Overcurrent Protection
Power Source AC 200 V, 3-Phase, 40 A, 50/60 Hz
Air Source 0.5 to 0.65 MPa
Dimensions/ Weight (Approx.) Main Body : W1,350 × D1,150 × H1,830 mm, 735 kg
Suction Device (Vacuum Cleaner) : W640 × D780 × H1,020 mm, 59 kg
