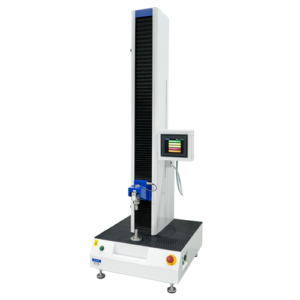

No.216-5kN
UNIVERSAL MATERIAL TESTER
Overview of UNIVERSAL MATERIAL TESTER
This universal tensile elongation/ compression tester (Auto Strain/ Strograph) is best suited for plastic and rubber.
The tester capacity comes in either a maximum of 5 kN respectively.
The test specimen is attached to chucks on both ends and is applied elongation/ compression force continuously through loadcell until breakage.
Tester control and tensile strength calculation are both conducted via touch panel interface.
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Model | No.216-5kN UNIVERSAL MATERIAL TESTER |
| Test Load | Max. 5 kN |
| Stroke | 1,000 mm* |
| Test Speed | 1 to 1,000 mm/min |
| Accessories | Chuck shapes are to be consulted. |
| Options | CSV Export Software, Extensometer (Stroke: 50 to 500 mm, Accuracy: ± 0.5 mm) |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W550 × D700 × H1,630 mm, 125 kg |
* The Chucks/ Loadcell length is not included.
No.216-10kN
UNIVERSAL MATERIAL TESTER
Overview of UNIVERSAL MATERIAL TESTER
This universal tensile elongation/ compression tester (Auto Strain/ Strograph) is best suited for plastic and rubber.
The tester capacity comes in either a maximum of 10 kN respectively.
The test specimen is attached to chucks on both ends and is applied elongation/ compression force continuously through loadcell until breakage.
Tester control and tensile strength calculation are both conducted via touch panel interface.
| Specifications are subject to change without notice. | |
|---|---|
| Model | No.216-10kN UNIVERSAL MATERIAL TESTER |
| Test Load | Max. 10 kN |
| Stroke | 1,000 mm* |
| Test Speed | 1 to 500 mm/min |
| Accessories | Chuck shapes are to be consulted. |
| Options | CSV Export Software, Extensometer (Stroke: 50 to 500 mm, Accuracy: ± 0.5 mm) |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W860 × D750 × H1,610 mm, 172 kg |
* The Chucks/ Loadcell length is not included.
