No.156
MARON MECHANICAL STABILITY TESTER
Overview of MARON MECHANICAL STABILITY TESTER
This tester is used to evaluate the mechanical stability of synthetic latex and synthetic resin emulsion.
By rotating the rotary disk at a constant speed with constant pressure to the polyethylene liner set at the bottom of the specimen container, the tester will measure the coagulum content formed within the test specimen.
Reference Standards
JIS (K6387)、(K6392)、(K6828)
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Model | No.156 |
| Specimen | 50 ± 0.5 g |
| Rotor Disk | φ50 mm, T13 mm |
| Rotor Disk Rotation Speed | 1,000 ± 20 rpm |
| Load Method | Lever Loading |
| Load Measuring | Balance, Max. 100 kgf (Scale 0.05 kgf) (Standard: 5 kgf, 10 kgf and 15 kgf) |
| Specimen Cup | Inner φ76 mm, H85 mm |
| Timer | Max. 99 hr 59 min |
| Accessories | Polyethylene Liner: 10 pcs |
| Option | Heat Plate, Safety Cover |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W670 × D800 × H1,140 mm/ 112 kg |

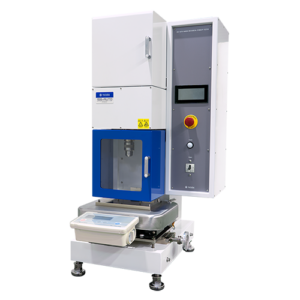

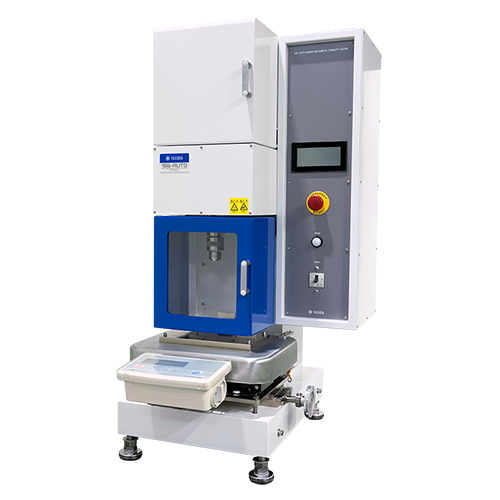

No.156-AUTO
MARON MECHANICAL STABILITY TESTER (AUTOMATIC)
Overview of MARON MECHANICAL STABILITY TESTER (AUTOMATIC)
This tester is the automatic version of the MARON MECHANICAL STABILITY TESTER.
The loading system adopts the real loading system and the rotary disk will go down into the specimen container automatically.
After a certain amount of time which will be set by the operator, the rotation of the rotary disk will stop automatically.
By using the changeover switch, the loading can be done manually using the pressuring handle.
Reference Standards
JIS (K6387)、(K6392)、(K6828)
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Model | No.156-AUTO |
| Specimen | 50 ± 0.5 g |
| Rotor Disk | φ50 mm, T13 mm |
| Rotor Disk Rotation Speed | 1,000 ± 20 rpm |
| Load Method | Dead Weight (Motorized Weight Loading) |
| Load Measuring | Balance, Max. 100 kgf (Scale 0.05 kgf) (Standard: 5 kgf, 10 kgf and 15 kgf) |
| Specimen Cup | Inner φ76 mm, H85 mm |
| Timer | Max. 99 hr 59 min |
| Accessories | Polyethylene Liner: 10 pcs |
| Option | Heat Plate, Safety Cover |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W550 × D750 × H1,080 mm/ 178 kg |
