No.219

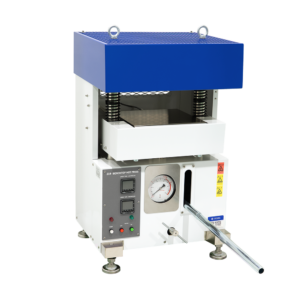

BENCHTOP HOT PRESS
Overview of BENCHTOP HOT PRESS
This pressure compacting machine is used to compress plastic and rubber.
It is designed compactly so that it can be installed in testing labs.
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Platen Size | 200 × 200 mm |
| Platen Opening | Max. 90 mm |
| Cylinder Diameter | φ45 mm |
| Maximum Force | 100 kN (Hydraulic 62.9 MPa) |
| Temperature Range | Max. 300 °C (Option: Max. 400 °C) |
| Option | Water Cooling Platan |
| Power Source | AC 200 V, 1-Phase, 20 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W465 × D400 × H781 mm, 169 kg |
