No.148-HD HEAT DISTORTION TESTER VIDEO


-OPERATION & MOTION VIDEO-

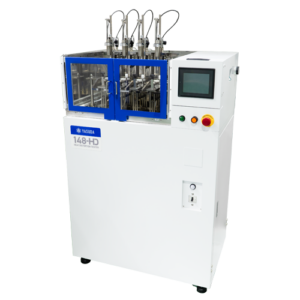

No.148-HD HEAT DISTORTION TESTER

JIS K7191-1、K7206、ASTM D648、D1525、ISO 75-1、306

No.148-HD HEAT DISTORTION TESTER

  • This tester is used to evaluate the heat resistance of plastic.
  • By loading specified bending stress to the test specimen while increasing the test temperature of the oil bath at a certain rate, the operator is to report the temperature at which the test specimen reaches standard deflection.
  • The tester can also conduct the VICAT softening temperature test.

⇒ Examples of Use

No.148-HD Specification

Specifications are subject to change without notice.
Stations 3, 4 or 6 Stations
Temperature Range Max. 300°C (Oil Bath)
Heating Speed 120 ± 10°C/hr, 50 ± 5°C/hr, VICAT: 120 ± 10℃/hr, 50 ± 5°C/hr
Bending Stress JIS・ISO: 1.80MPa (Method A), 0.45MPa (Method B), 8.00Mpa (Method C)
ASTM: 1.82Mpa, 0.455Mpa
Weight Load DTUL: Choose 2 weights from initial load 76.5gf to max. 3,210gf
Options
VICAT: 10 ± 0.2N, 50 ± 1N
BP: 19.6 ± 20N
Displacement Measurement Differential Transformer: Scale 1/1,000mm, Stroke 4mm
Pressure Foot DTUL: R3.0 ± 0.2mm
Options
VICAT: 1.000 ± 0.015mm²
BP: Ball Diameter 5mm
Support Length 64 ± 1mm, 100 ± 1mm
Option 101.6 ± 0.5mm
Refrigerating Device Water Circulating System
Option Built-In Refrigerator
*For low test start temperature (e.g., 20 to 23°C)
Oil Circulation Device Propeller Type
For 3 and 4 Stations: 2 Propellers
For 6 Stations: 3 Propellers
Software Windows 10 compatible(Included)
Accessories Pressure Foot Adjustment, Specimen Holder
Options Silicon Oil, Safety Cover, Simultaneous Loading Device, Oil Level Sensor, Glass Sample for Calibration (Fused Quartz), Safety Door Lock, Signal Tower Light
Power Source Without refrigerator
For 3 and 4 Stations: Single-Phase, AC200/220V 20A 50/60Hz
For 6 Stations: Single-Phase, AC200/220V 30A 50/60Hz
With refrigerator
For 3 and 4 Stations: Three-Phase, AC200/220V 20A 50/60Hz
For 6 Stations: Three-Phase, AC200/220V 30A 50/60Hz
Dimensions & Weight (Approx.) Floor Model
W1,100 × D700 × H1,500mm
180 to 300 kg
Tabletop Model
W1,100 × D700 × H1,000mm
155 to 185 kg

Inquiry Form

No.148-HDA HEAT DISTORTION TESTER (FULL AUTOMATIC) VIDEO


-OPERATION & MOTION VIDEO-

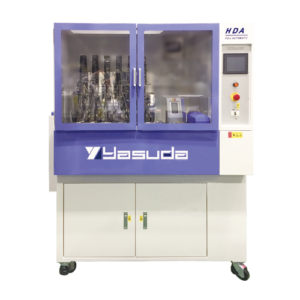

No.148-HDA HEAT DISTORTION TESTER (FULL AUTOMATIC)

JIS K7191-1、K7206、ASTM D648、D1525、ISO 75-1、306

  • This tester is the fully automatic version of the HEAT DISTORTION TESTER.
  • The robotic mechanism enables the operator to conduct the usual heat distortion test and VICAT softening temperature test automatically.
  • By setting the test specimen to the specimen feeder, the computer software will continuously conduct heat resistance test for a maximum of 120 samples.

No.148-HDA Specification

Specifications are subject to change without notice.
Stations 3 or 6 Stations
Temperature Range Max. 300°C (Oil Bath)
Heating Speed 120 ± 10°C/hr and 50 ± 5 °C/hr, VICAT: 120 ± 10℃/hr, 50 ± 5°C/hr
Bending Stress JIS・ISO: 1.80MPa (Method A), 0.45MPa (Method B), 8.00Mpa (Method C)
ASTM: 1.82Mpa, 0.455Mpa
Weight Load DTUL: Choose 2 weights from initial load 76.5gf to max. 3,210gf
*Simultaneous Loading Device included
Options
VICAT: 10 ± 0.2N, 50 ± 1N
BP: 19.6 ± 20N
Displacement Measurement Differential Transformer: Scale 1/1,000 mm, Stroke 4 mm
Pressure Foot DTUL: R3.0 ± 0.2mm
Options
VICAT: 1.000 ± 0.015mm²
BP: Ball Diameter 5mm
Support Length 64 ± 1mm, 100 ± 1mm
Option 101.6 ± 0.5mm
Refrigerating Device Water Circulating System, Built-In Refrigerator
*For low test start temperature (e.g., 20 to 23°C)
Oil Circulation Device Propeller Type
For 3 and 4 Stations: 2 Propellers
For 6 Stations: 3 Propellers
Test Specimens 40 pcs × 3 sets (Total 120 pcs)
*For T10mm
Software Windows 10 compatible (Included)
Accessories Pressure Foot Adjustment, Specimen Holder
Options Silicon Oil, Glass sample for calibration (fused quartz), Oil level sensor, Safety door lock, Signal tower light
Power Source Without refrigerator
For 3 and 4 Stations: Single-Phase, AC200/220V 20A 50/60Hz
For 6 Stations: Single-Phase, AC200/220V 30A 50/60Hz
With refrigerator
For 3 and 4 Stations: Three-Phase, AC200/220V 20A 50/60Hz
For 6 Stations: Three-Phase, AC200/220V 30A 50/60Hz
Air Source 0.5MPa or more
Dimensions & Weight (Approx.) W1,460 × D900 × H1,715mm
450 to 550kg

Inquiry Form

No.148-HD500 HIGH TEMPERATURE HEAT DISTORTION TESTER

JIS K7191-1、K7206、ASTM D648、D1525、ISO 75-1,306
No.148-HD500 HIGH TEMPERATURE HEAT DISTORTION TESTER

  • This tester adapts the air circulating heating system to test the heat resistance of plastic (usually super engineering plastic) up to 500 °C.
  • The specimen racks are made by glass quartz to prevent measuring disturbances due to the deflections of the racks itself.

No.148-HD500 Specification

Specifications are subject to change without notice.
Stations 3 Stations
Temperature Range Max. 500°C (Air Chamber, Nitrogen Gas Filling Device Attached)
Heating Speed 120 ± 10°C/hr, 50 ± 5°C/hr, VICAT : 120 ± 10 ℃/hr, 50 ± 5°C/hr
Bending Stress JIS・ISO: 1.80MPa (Method A), 0.45MPa (Method B), 8.00Mpa (Method C)
ASTM: 1.82Mpa, 0.455Mpa
Weight Load DTUL: Choose 2 weights from initial load 76.5gf to max. 3,210gf
*Simultaneous Loading Device included
Options
VICAT: 10 ± 0.2N, 50 ± 1N
BP: 19.6 ± 20N
Displacement Measurement Differential Transformer: Scale 1/1,000mm, Stroke 4mm
Pressure Foot DTUL: R3.0 ± 0.2mm
Options
VICAT: 1.000 ± 0.015mm²
BP: Ball Diameter 5mm
Support Length 64 ± 1mm, 100 ± 1mm
Refrigerating Device Fan type (Air Fan Cooling), 3 Fans
Oil Circulation Device Propeller type, 2 propellers
Software Windows 10 Compatible (Included)
Accessories Pressure Foot Adjustment, Specimen Holder
Options Simultaneous Loading Device, Carbon Gas Injection Cooling System, Glass Sample for Calibration (Fused Quartz), Signal Tower Light
Power Source AC 200V, Single-Phase, 30A, 50/60Hz
Dimensions & Weight (Approx.) W1,100 × D750 × H1,560mm/ 260kg
