Evaluating gel time of thermosetting resins | GEL TIME TESTER (MAGNET TYPE) & GEL TIME TESTER (TORQUE METER TYPE) / No.153

• No.153 GEL TIME TESTER (MAGNET TYPE)
• No.153-GTR GEL TIME TESTER (TORQUE METER TYPE)

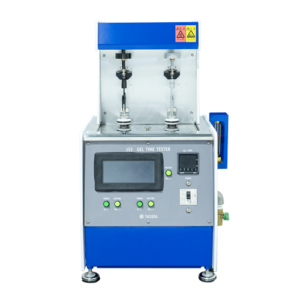

Overview of GEL TIME TESTER (MAGNET TYPE)

This tester is made to easily measure the gelatinization time of thermoset plastic resin.
The operator is to put the test specimen into the test tube with a rotating rotor.
As the gelatinization progresses and a certain torque forms in the test specimen, the magnetic coupling system will drop the rotor to indicate that the test specimen has gelled.

Specification

Specifications are subject to change without notice.
Model	No.153
Number of Test Samples	2 or 5 samples
Detected Torque	3.7–4.0 gf·cm
Temperature	Max. 200 °C
Glass Rod Rotation	25 rpm (50 Hz), 24 rpm (60 Hz)
Timer	Max. 999,999 s or max. 99 hr 59 min 59 sec
Accessories	Glass rods (diameter ø5×110 mm, 100 rods), test tubes (outside diameter ø12×90 mm, 100 tubes)
Options	Silicone oil (approx. 2 L)
Power Source	AC 100 V 1-phase 10 A 50/60 Hz
Dimensions and Weight (Approx.)	2 samples: W380×D410×H610 mm, 28 kg 5 samples: W730×D420×H670 mm, 53 kg

---

Overview of GEL TIME TESTER (TORQUE METER TYPE)

This tester continuously records the time series variation of torque during the gelatinization process of thermoset plastic resin.

Specification

Specifications are subject to change without notice.
Model	No.153-GTR
Number of Test Samples	1 sample
Detected Torque	Max. 20.0 mN·m
Temperature	Max. 200 °C
Glass Rod Rotation	25 rpm (50 Hz), 24 rpm (60 Hz)
Timer	Max. 999,999 s or max. 99 hr 59 min 59 sec
Accessories	Glass rods (diameter ø5×110 mm, 100 rods), test tubes (outside diameter ø12×90 mm, 100 tubes)
Options	Silicone oil (approx. 2 L), PC software, data logger
Power Source	AC 100 V 1-phase 10 A 50/60 Hz
Dimensions and Weight (Approx.)	W570×D375×H720 mm, 30 kg
