No.145-G GEHMAN STIFFNESS TESTER OPERATION & MOTION VIDEO
No.145-G GEHMAN STIFFNESS TESTER
JIS K6261、ISO 1432
- This tester is used to determine the relative stiffness characteristics of vulcanized or thermoplastic rubber.
- The tester will record the torsion angle of the test specimen 10 seconds later for which has been twisted to an angle of 180 degrees.
- This procedure is to be done from 23 °C to the lowest test temperature of the test, so that the temperature (T2, T5, T10, and T100) of which the modulus values are at 2, 5, 10, and 100 can be obtained from the Temp. – Angle curve.
No.145-G Specification
| Specifications are subject to change without notice. | |
| Hangings | 4 Hangings |
| Specimen | L40.0 ± 2.5 mm, W3.0 ± 0.2 mm, T2.0 ± 0.2 mm |
| Torsion Wire | L: 65 ± 8 mm, Torsional Constant: 2.81 mN⋅m/rad (Standard Wire) 0.70 m N.m/rad,11,24 m N.m/rad |
| Chuck Distance | 25 ± 3 mm |
| Torsion Angle Measurement | Rotary Encoder, Detection: 0.1° |
| Temperature Range | -70 to 30 °C (Refrigerator & Refrigeration Medium) |
| Refrigertion Medium Amount | Approx.8 L |
| Temperature Rise | 5 °C interval (Condition Controlling Time: 5 min) |
| Software | Windows Compatible |
| Accessories | Specimen Setting Jig,Torsion Wire Jig: 1 pc each |
| Power Source | AC 200 V, 3-Phase, 20 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W720 × D950 × H1,900 mm, 270 kg |
Contact Us
For over 70 years, Yasuda Seiki’s testing machines have supported quality control and research & development across various industries, meeting the diverse needs of our clients.
Other products
- No.401 For the tester to evaluate the permeability according to Calcium Chloride Method (A-1 Method) or Water Method
- No.201 Vinyl Leather Cloth Cold Proof Tester【YASUDA SEIKI】For the tester to conduct a cold temperature resistance test on plastic・rubberest on plastic・rubber
- No.546 Automatic Hoover Muller【YASUDA SEIKI】To grind・scatter the colorant
- No.120-SAS Melt Flow Index Tester (Automatic)
- No.514 Paint Film Bending Tester【YASUDA SEIKI】For the tester to evaluate the bending endurance of the coated film according to the cylindrical form mandrel method
- No.260 For Measuring Compression Residual Strain of Urethane Foam【YASUDA-SEIKI】 FOAM RUBBER REPEATED COMPRESSION TESTER
- No.550 Gardner Type Mandrel Bending Tester【YASUDA SEIKI】To evaluate the bending stress of paint・varnish

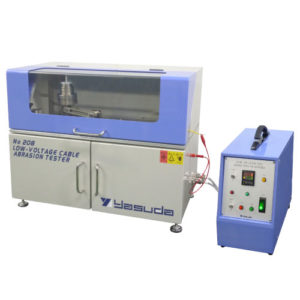

- No.208 LOW-VOLTAGE CABLE ABRASION TESTER FOR AUTOMOBILE｜YASUDA SEIKI SEISAKUSHO LTD. providing you the best material testing equipment.
