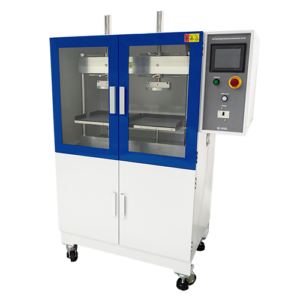

No.260 FOAM RUBBER REPEATED COMPRESSION TESTER
JIS (K6382)、K6400-4
- This tester is used to repeatedly test compression residual strain of polyurethane foam and latex foam soft material according to the constant displacement method.
- Placing the test specimen between the two parallel plates and continuously repeating the compression to the test specimen 80,000 times at a compressing power so that the test specimen’s thickness becomes 50 % of the initial size.
- 30 minutes after the test specimen has been repeatedly compressed, the decreasing rate of the test specimen’s thickness is to be measured.
Specification
| Specifications are subject to change without notice. | |
|
Number of Test Stations |
2 stations |
|
Test Sample |
Thickness 20 mm or above, width and length 50 mm or above |
|
Compression Platen |
310×310 mm, hole diameter ø6 mm (20 mm pitch) |
|
Compression Stroke Length |
10–100 mm (Adjustable and independent between the test stations) |
|
Pounding Rate |
60–180 pounds/min |
|
Counter |
6 digit preset counter |
|
Options |
Upper and lower safety covers, emergency stop button, replaceable upper platen |
| Power Source |
AC 200 V 3-phase 15 A 50/60 Hz |
|
Dimensions and Weight (Approx.) |
W1,130×D600×H1,600 mm, 292 kg |
