No.517 DU PONT TYPE FALLING IMPACT TESTER【YASUDA-SEIKI】 For Testing Plastic Sheet and Paint Coat Durability

• No.517 DU PONT TYPE FALLING IMPACT TESTER
• No.517-L DU PONT TYPE FALLING IMPACT TESTER (WITH REFRIGERATING MACHINE)

Overview of DU PONT TYPE FALLING IMPACT TESTER

This tester is used to evaluate the falling weight endurance on coated film and point impact strength for plastic film.
Attaching the test specimen between the die and the punch, the operator is to drop a weight from a certain height.
After the weight has been dropped the operator is to check for transformations, cracks, and peels caused by the impact.
The tester can also be assorted with a low temperature oven (L type).

Reference Standards

JIS (K5400), K5600-5-3, ASTM D2794, ISO 6272

Specification

For All Models

Specifications are subject to change without notice.
Specifications	For 500 mm drop height	For 1,000 mm drop height
Drop Height	50–max. 500 mm (50 mm increments)	50–max. 1,000 mm (50 mm increments)
Falling Weight	300 g, 500 g, 1,000 g	1,000 g, 2,000 g
Indenter	Tip radius 1/16″, 1/8″, 3/16″, 1/4″	Diameter ø0.5″, ø0.625″
Panel Support	For radius 1/16″, 1/8″, 3/16″, 1/4″	Hole diameter ø0.64″
Test Panel	Steel panel, 200×100×thickness 0.6 mm	―

No.517 DU PONT TYPE FALLING IMPACT TESTER

Specifications are subject to change without notice.
Specifications	For 500 mm drop height	For 1,000 mm drop height
Dimensions and Weight (Approx.)	W500×D300×H840 mm, 45 kg	W500×D300×H1,350 mm, 50 kg

---

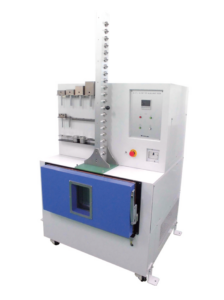

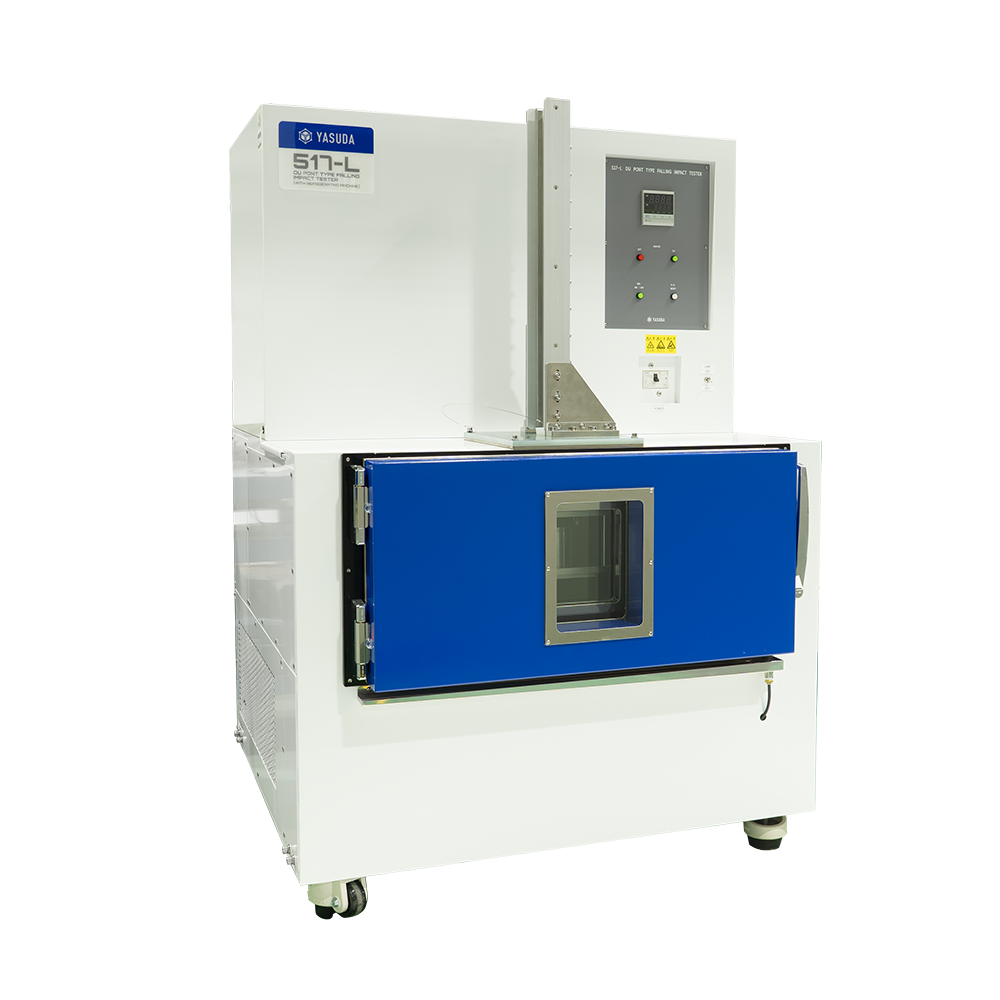

Overview of DU PONT TYPE FALLING IMPACT TESTER (WITH REFRIGERATING MACHINE)

This model is equipped with a low temp.
chamber and can be used for low temp. impact testing.

Reference Standards

JIS (K5400), K5600-5-3, ASTM D2794, ISO 6272

Specification

No.517-L DU PONT TYPE FALLING IMPACT TESTER (WITH REFRIGERATING MACHINE)

Specifications are subject to change without notice.
Specifications	For 500 mm drop height	For 1,000 mm drop height
Temperature	-35–60℃ (refrigeration control)
Power Source	AC 200 V 3-phase 20 A 50/60 Hz
Dimensions and Weight (Approx.)	W1,000×D1,000×H1,600 mm, 330 kg	W1,000×D1,000×H1,900 mm, 340 kg
