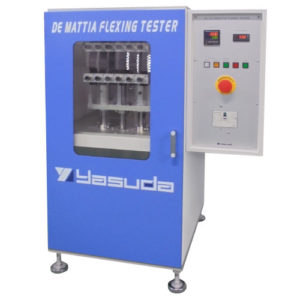

No.119 DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER
- This tester is used to measure the appearance of cracks and the growth of the cracks to vulcanized rubber and thermo-plastic rubber by adding repetitive bending stress.

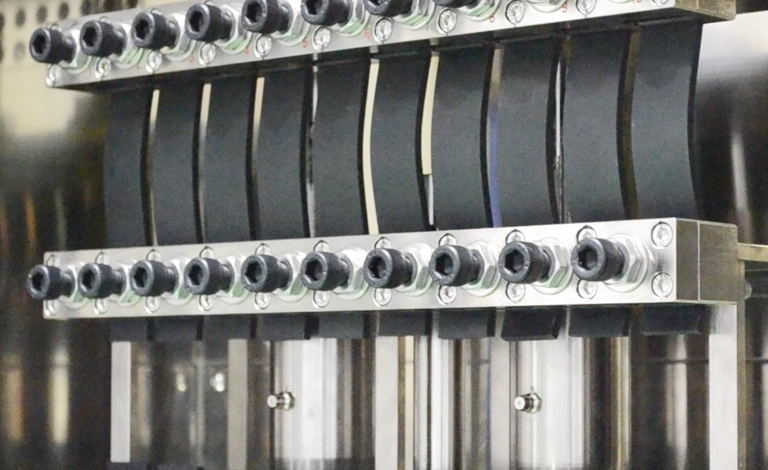

- The test is conducted by setting the sample to the parallel allocated Chuck and adding repetitive bending stress.
- The tester can also be assorted with a low temperature oven (L type).
No.119 Specification
| Specifications are subject to change without notice. | |
|
Number of Test Samples |
6 samples per test |
|
Test Sample |
Width 25 ± 1 mm, length 140–155 mm, thickness 6.30 ± 0.30 mm, groove radius R2.38 ± 0.03 mm |
|
Grip Distance |
Max. 75 +1/-0 mm |
|
Travel Distance |
Max. 60 mm (Standard 57 +0.5/-0 mm) |
|
Flexing Cycle |
300 ± 10 cycles per minute |
|
Counters |
8 digit preset counter and 8 digit total counter |
| Accessories |
Grip distance gauge, piercing blade |
| Option |
Piercing tool set |
| Power Source |
AC 200 V 3-phase 15 A 50/60 Hz |
|
Dimensions and Weight (Approx.) |
W680×D580×H920 mm, 115 kg |

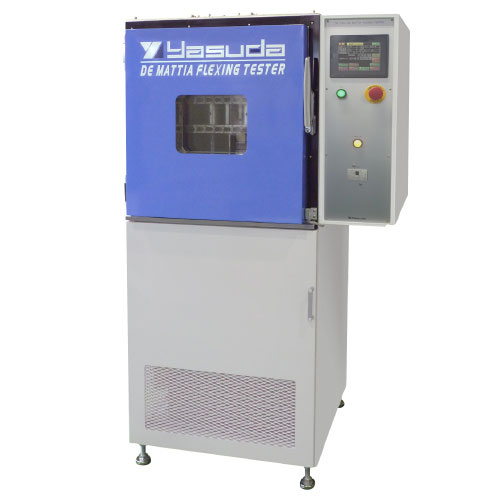

No.119-L/H DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE / WITH HEATING CHAMBER)
- This tester is used to measure the appearance of cracks and the growth of the cracks to vulcanized rubber and thermo-plastic rubber by adding repetitive bending stress.
- The test is conducted by setting the sample to the parallel allocated Chuck and adding repetitive bending stress.
- Test at low temperatures or high temperatures with a constant temperature chamber-equipped No.119-L/H.
No.119-L/H Specification
| Specifications are subject to change without notice. |
||
|
Model |
119-L |
119-H |
|
Number of Test Samples |
6 samples or 20 samples per test |
|
|
Test Sample |
Width 25 ± 1 mm, length 140–155 mm, thickness 6.30 ± 0.30 mm, groove radius R2.38 ± 0.03 mm |
|
|
Grip Distance |
Max. 75 ＋1/-0 mm | |
|
Travel Distance |
Max. 60 mm (Standard 57 +0.5/-0 mm) | |
|
Flexing Cycle |
300 ± 10 cycles per minute |
|
| Counter |
8 digit preset counter and 8 digit total counter |
|
|
Temperature |
-35–150°C (refrigeration control) |
Room temperature + 25–150°C |
| Accessories |
Grip distance gauge, piercing blade |
|
| Option |
Piercing tool set, CSV file output |
|
| Power Source |
AC 200 V 3-phase 40 A 50/60 Hz |
AC 200 V 3-phase 30 A 50/60 Hz |
|
Dimensions and Weight (Approx.) |
6 samples: W960×D850×H1,750 mm, 500 kg |
|

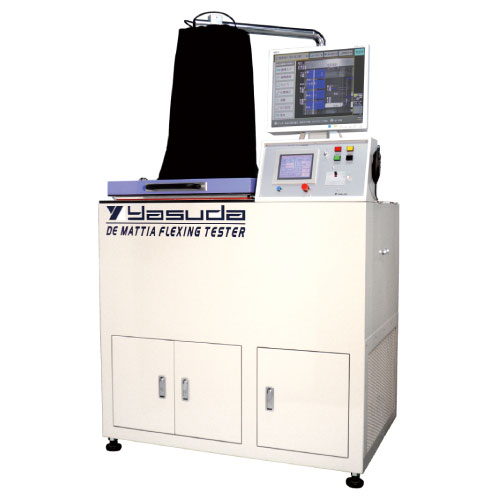

No.119-L/H-VR DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE/WITH HEATING CHAMBER/PICTURE BREAK DETECTION FUNCTION)
- With an ultra high speed digital camera, this model can capture the image of the sample and detect sample breaks. It can also individually record the number of breaks for each channel.
No.119-L/H-VR Specification
| Specifications are subject to change without notice. |
||
|
Model |
No.119-L-VR |
No.119-H-VR |
|
Test Sample |
Width 25 ± 1 mm, length 140–155 mm, thickness 6.30 ± 0.30 mm, groove radius R2.38 ± 0.03 mm |
|
|
Grip Distance |
Max. 75 +1/-0 mm | |
|
Travel Distance |
Max. 60 mm (Standard 57 +0.5/-0 mm) | |
|
Flexing Cycle |
300 ± 10 cycles per minute |
|
|
Number of Test Samples |
12 samples per test (6 samples × 2 rows) |
|
|
Counters |
8 digit preset counter and 8 digit total counter |
|
| Timer | Max. 999 hr | |
|
Temperature |
-35–150°C (refrigeration control) |
Room temperature + 25–150°C |
| Break Detection |
Ultra high speed digital camera |
|
| Accessories |
Grip distance gauge, piercing blade |
|
|
Power Source |
AC 200 V 3-phase 40 A 50/60 Hz |
|
|
Dimensions and Weight (Approx.) |
W1,180×D1,200×H1,980 mm, 560 kg |
|
