No.145-A/No.145-B CREEP TESTER (PULLEY TYPE/ BALANCE TYPE)
- This tester is used to measure the increasing creep by applying static load to plastic test specimens.
- By choosing the Chuck, the tester enables to conduct tensile test, condensation test, and bending test.
No.145-A/No.145-B Specification
| Specifications are subject to change without notice. | ||
| Model | No.145-A | No.145-B |
|
Number of Test Samples |
3, 6, or 10 samples per test |
|
| Specimen |
Refer to JIS K7161 |
|
|
Loading System |
Pulley |
Balance Scale |
|
Load |
Max. 500 N (50 kgf) |
Max. 5 kN (500 kgf) |
|
Displacement |
Magnetrostrictive linear displacement transducer(resolution: 0.01 mm, measurement range: 150 mm) |
Magnetrostrictive linear displacement transducer(resolution: 0.01 mm, measurement range: 40 mm) |
|
Temperature |
Max. 200℃ (Option: 300℃) |
|
|
PC Software |
Available for Windows |
|
|
Options |
Compression frame and platens, bend fixtures, low-temperature chamber, temperature and humidity chamber, split chamber, displacement measurement within the gauge length |
|
| Power Source |
Vary according to the tester specs. |
|
|
Dimensions and Weight (Approx.) |
Vary according to the tester specs. |
|

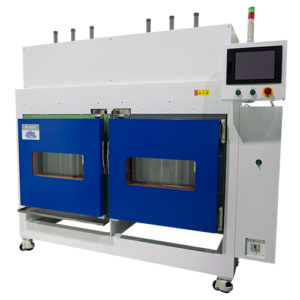

No.145-SV CREEP TESTER (SERVOMOTOR TYPE)
- Adding a servomotor to the usual actual load type creep tester, and detecting the load using a load cell, the servomotor type creep tester can effectively reduce impact when the test specimen breaks, simultaneously saving space.
- By choosing the Chuck, the tester enables conducting tensile stress relaxation tests and the condensation stress relaxation test.
- Stress relaxation testing specifications can also be added.
No.145-SV Specification
| Specifications are subject to change without notice. | |
|
Number of Test Samples |
3, 6, or 10 samples per test |
|
Test Sample |
Refer to JIS K7161, JIS-K6263 |
|
Loading System |
Servomotor |
|
Load |
Max. 5 kN (500 kgf), Max. 10 kN (1,000kgf) |
|
Load Measurement |
Load Cell |
|
Displacement Measurement |
Magnetrostrictive linear displacement transducer |
|
Temperature |
Max. 200℃ (Option: 300℃) |
|
PC Software |
Available for Windows |
|
Options |
Compression frame and platens, bend fixtures, low-temperature chamber, temperature and humidity chamber, split chamber, displacement measurement within the gauge length, stress relaxation test specification |
| Power Source |
Vary according to the tester specs. |
|
Dimensions and Weight (Approx.) |
Vary according to the tester specs. |
