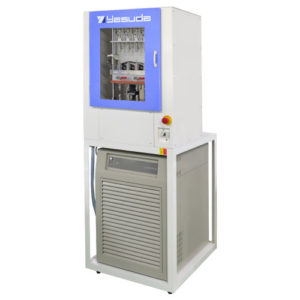

No.121-RA BRITTLENESS TEMPERATURE TESTER (WITH REFRIGERATING MACHINE/ ROTARY HOLDER TYPE)
- This tester is equipped with a rotary holder to continuously run maximum of 4 tests.
- The testing condition (test temperature and dip time) for the 4 tests can be set on the touch panel screen, which will enable efficient testing.
No.121-RA Specification
| Specifications are subject to change without notice. | |
|
Number of Samples |
5 samples × 4 holders (20 pieces total), automatic testing |
|
Test Sample |
Type A: width 6.0 ± 0.4 mm, length 38± 2 mm,thickness 2.0 ± 0.2 mm |
| Striking Edge |
Radius 1.6 ± 0.1 mm, clearance from the sample clamp 6.4 ± 0.2 mm, distance between the point of impact and sample clamp 8.0 ± 0.2 mm |
| Striking Speed | 2.0 ± 0.2 m/s |
|
Temperature |
Up to -70℃ (refrigeration control with heat transfer medium), |
|
Heat Transfer Medium |
Approx. 15 L |
| Accessories |
Tightening pin, torque screwdriver |
|
Options |
Type B sample holder,CSV file output,sample punch |
| Power Source |
AC 200 V 3-phase 30 A 50/60 Hz |
| Air Source |
0.5 MPa or above |
| Dimensions/ Weight (Approx.) |
W970×D950×H1,900 mm, 450 kg |
No.121-R BRITTLENESS TEMPERATURE TESTER (WITH REFRIGERATING MACHINE)
- This tester is used to measure the 50 % impact brittleness temperature of plastic, rubber, and electric insulated wire at low temperature.
- By attaching one end of the sample to the holder and adding impact to the other end, the operator is to check for any breaks to the sample.
No.121-R Specification
| Specifications are subject to change without notice. | |
|
Number of Samples |
5 pieces per sample holder |
|
Test Sample |
Type A: width 6.0 ± 0.4 mm, length 38± 2 mm,thickness 2.0 ± 0.2 mm |
|
Striking Edge |
Radius 1.6 ± 0.1 mm, clearance from the sample clamp 6.4 ± 0.2 mm, distance between the point of impact and sample clamp 8.0 ± 0.2 mm |
| Striking Speed | 2.0 ± 0.2 m/s |
|
Temperature |
Up to -70℃ (refrigeration control with heat transfer medium), |
|
Heat Transfer Medium |
Approx. 15 L |
| Accessories |
Tightening pin, torque screwdriver |
|
Options |
Rotary sample holder(5 samples × 4 holders),Type B sample holder, CSV file output,sample punch |
| Power Source |
AC 200 V 3-phase 30 A 50/60 Hz |
| Dimensions/ Weight (Approx.) |
W970×D950×H1,900 mm, 450 kg |
No.121-AUTO BRITTLENESS TEMPERATURE TESTER (FULL AUTOMATIC)
- This tester is the robotic version of the BRITTLENESS TEMPERATURE TESTER.
- By inputting the test conditions in the computer software, the operator can continuously run 40 tests (200 samples).
No.121-AUTO Specification
| Specifications are subject to change without notice. | |
|
Number of Samples |
5 samples × 40 holders (200 pieces total) |
|
Test Sample |
Type A: width 6.0 ± 0.4 mm, length 38± 2 mm,thickness 2.0 ± 0.2 mm |
| Striking Edge |
Radius 1.6 ± 0.1 mm, clearance from the sample clamp 6.4 ± 0.2 mm, distance between the point of impact and sample clamp 8.0 ± 0.2 mm |
| Striking Speed | 2.0 ± 0.2 m/s |
|
Temperature |
Up to -70℃ (refrigeration control) |
|
Heat Transfer Medium |
Approx. 15 L |
|
PC Software |
Available for Windows |
| Accessories |
Tightening pin, torque screwdriver |
|
Options |
Type B sample holder, sample punch |
| Power Source |
AC 200 V 3-phase 30 A 50/60 Hz |
| Air Source |
0.5 MPa or above |
| Dimensions/ Weight (Approx.) |
W1,160×D1,030×H2,150 mm, 612 kg |
