No.183-BT

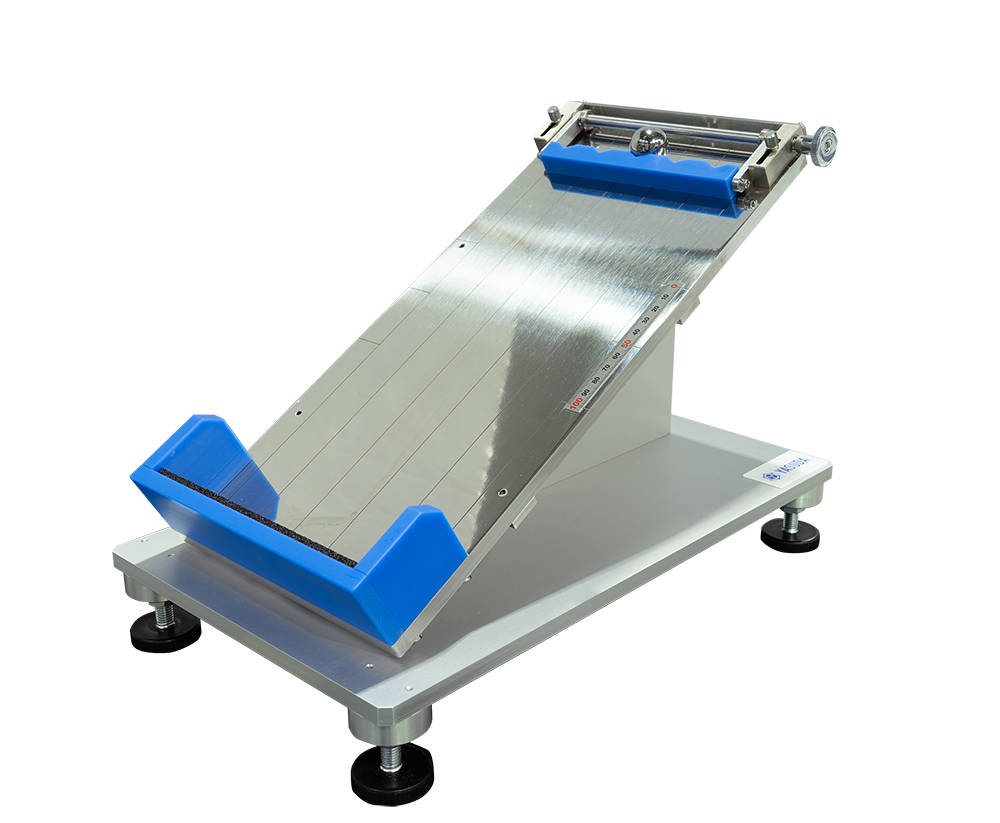

BALL TACK TESTER
Overview of BALL TACK TESTER
This tester is used to simply evaluate the tackiness of adhesive tape.
The operator is to measure the largest ball that stops rolling within the measurement site of the inclination board.
Reference Standards
JIS Z0237
Specification
| Specifications are subject to change without notice. | ||
|---|---|---|
Model | Fixed Incline | Adjustable Incline |
Number of Lanes | 5 lanes | |
Inclined Plate | Approach length 100 mm, test length100 mm | |
Angle of Incline | 30˚ | 15˚–45˚ |
Steel Ball | φ1/16″–φ1″ (31 sizes, 1 pc each) | |
Options | Japanese Pharmacopoeia specification (183-BT-P) | |
Dimensions and Weight (Approx.) | W240×D315×H220 mm, 6.5 kg | W240×D315×H220 mm, 8 kg |
