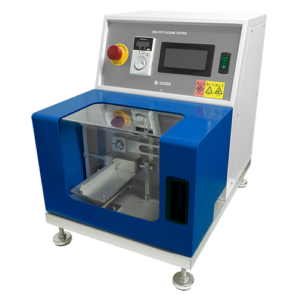

No.306 FPC FLEXING TESTER
JIS C5016
- This test is used to evaluate the folding endurance of plastic film and flexible print circuit board.
- The operator is to attach the test specimen to a fixed board and a movable board so that the test specimen is attached at a certain radius. The movable board will bend left and right to flex the test specimen.
Specification
| Specifications are subject to change without notice. | |
| Model | No.306 FPC FLEXING TESTER |
| Hanging | 1Hanging |
| Flexing Radius | Max. 10 mm |
| Flexing Speed | Max. 60 cpm |
| Flexing Length | Reciprocate 20（± 10） mm、40（± 20） mm、60（± 30） mm |
| Counter | 6 Digits Preset Counter |
| Temperature Range | ― |
| Option | Conduction Device(for FPC) |
| Power Source | AC 100 V、1-Phase、7 A、50/60 Hz |
| Dimensions/Weight(Approx.) | W360 × D600 × H550 mm/37 kg |
