No.315 ELMENDORF TYPE TEARING RESISTANCE TESTER

JIS K7128-2, P8116, TAPPI-T414, ISO 1974, 6383-2

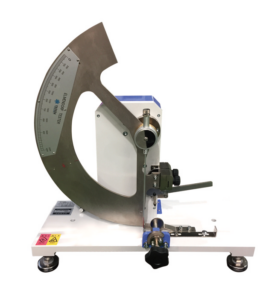

No.315 ELMENDORF TYPE TEARING RESISTANCE TESTER

  • This tester is used to evaluate tearing resistance of paper, paper board and plastic film according to the Elmendorf type tearing method.
  • Swinging the fan shaped pendulum from a prescript height to tear the test specimen that has been cut beforehand.
  • The operator is to read the workload to calculate the tearing resistance.

Specification

Specifications are subject to change without notice.
Model No.315

Number of Samples

Standard number of samples: 16 pieces
(Test with the number of samples that the energy absorbed by the pendulum in tearing lies between 20 and 80%.)

Pendulum Capacity

Select from 8, 16, 32, 64, and/or 128 N
Scale: 0–1,000 mN

Test Sample

Width 63 ± 0.2 mm, length 76 mm

Initial Cut Length

20 mm (untorn length 43.0 ± 0.5 mm)

Jaws

Width 36 mm, depth 15.0 ± 0.1 mm, distance between the two pairs of vises

Dimensions and Weight (Approx.)

W600×D265×H630 mm, 45 kg

Inquiry Form

No.315-D ELMENDORF TYPE TEARING RESISTANCE TESTER (DIGITAL)

JIS K7128-2、P8116、TAPPI-T414、ISO 1974、6383-2

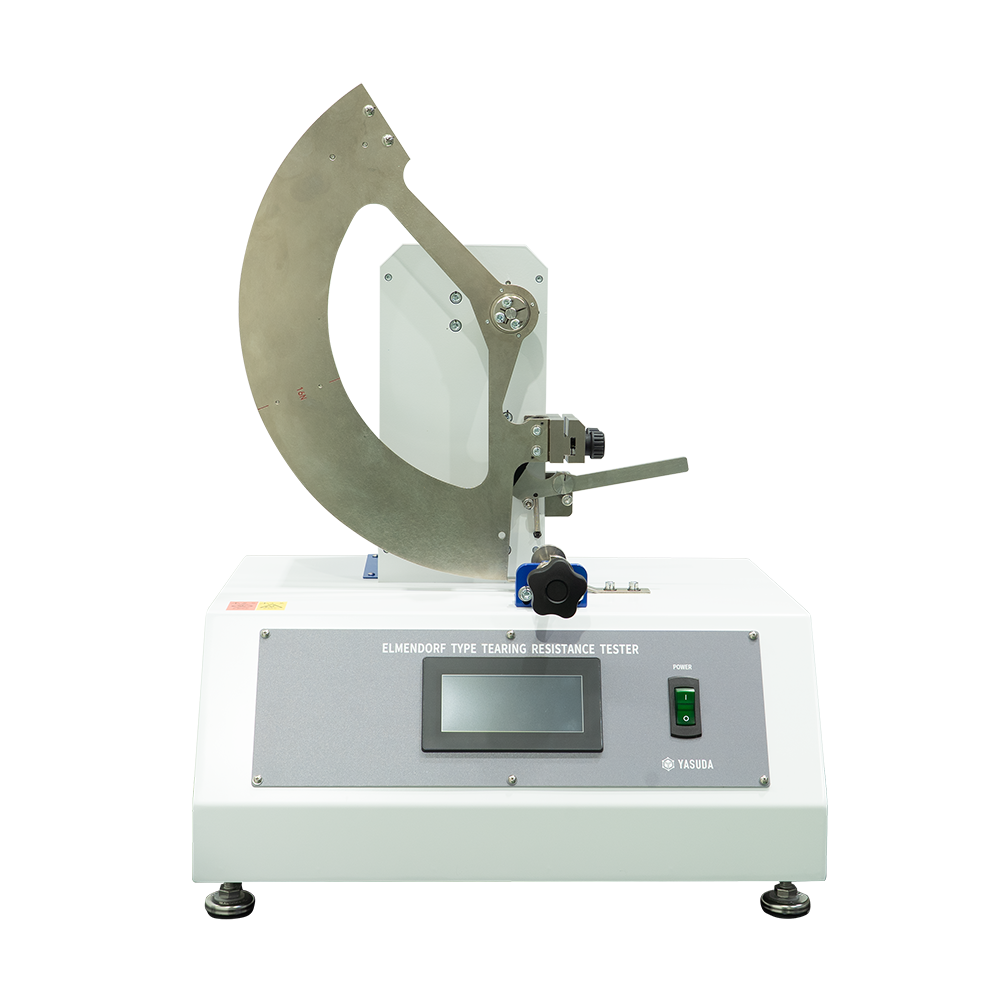

No.315-D ELMENDORF TYPE TEARING RESISTANCE TESTER (DIGITAL)

  • The digital type helps the operator to read the tearing resistance directly without having to calculate.
  • Insert the number of the amount of test specimen to the touch panel and the device will automatically calculate the average tearing resistance from that amount.
  • Also, the digital panel is equipped with loss energy calibration function so that pure tearing resistance of the test sample can be measured.

Specification

Specifications are subject to change without notice.
Model No.315-D

Number of Samples

Standard number of samples: 16 pieces
(Test with the number of samples that the energy absorbed by the pendulum in tearing lies between 20 and 80%.)

Pendulum Capacity

Select from 8, 16, 32, 64, and/or 128 N
Scale: 0–1,000 mN

Test Sample

Width 63 ± 0.2 mm, length 76 mm

Initial Cut Length

20 mm (untorn length 43.0 ± 0.5 mm)

Jaws

Width 36 mm, depth 15.0 ± 0.1 mm, distance between the two pairs of vises

Options

Digital display, pneumatic vise

Power Source

AC 100 V 1-phase 3 A 50/60 Hz

Dimensions and Weight (Approx.)

W550×D400×H670 mm, 47 kg
