• No.536 DENSITY CUP
• No.506 SPREAD METER
• No.506-PCM AUTOMATIC SPREAD METER
• No.505 FLOW CUP
• No.507 WET FILM THICKNESS GAUGE
• No.558 VOLUME DENSITY METER

Overview of DENSITY CUP

The DENSITY CUP is used to measure the density of liquid paint and adhesion bond according to the density cup method.
The operator is to measure the density at a prescript temperature and present the density in g/ml form.

Reference Standards

JIS (K5400), K5600-2-4, K6833, ISO 2811

Specification

Specifications are subject to change without notice.
Capacity	100 ml, 50 ml
Dimensions	Outer Diameter φ45 × 90 mm (100 ml) *10 ml Capacity can also be specially manufactured.

---

Overview of SPREAD METER

This tester is used to evaluate the flow ability of colorant and ink according to the spread meter method.
The operator is to measure the radius of the test specimen’s spread, 60 seconds after when the upper plate which is placed on the parallel plate falls on to the test specimen.

Reference Standards

JIS K5101, K5701-1

Specification

Specifications are subject to change without notice.
Load Plate	Mass 115 ± 1 g (material: glass or acrylic)
Scale on the Fixed Plate	Diameter ø12–ø100 mm (pitch radius 1 mm)
Sample Hole	Inside diameter ø10 ± 0.03 mm,depth 6.37 ± 0.02 mm (capacity 0.5 ml)
Fall Height	20 ± 1 mm
Options	Circulating water bath
Dimensions and Weight (Approx.)	W160×D110×H180 mm, 4 kg

---

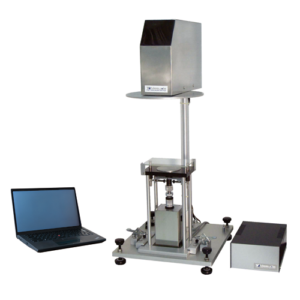

Overview of AUTOMATIC SPREAD METER

This tester is the automated version of the SPRED METER.
By attaching a camera to see and how the test specimen spreads, the test data can also be saved and data processed by a PC with a dedicated software.

Reference Standards

JIS K5101, K5701-1

Specification

Specifications are subject to change without notice.
Spread Time	10, 30, 60, 100, 150, 210, 300 s
Output Data	Diameter of spread after 60 s (D), slope (S), intercept (IC), and yield value (YV)
PC Software	Available for Windows
Options	Weight loading feature
Power Source	AC 100 V 1-phase 5 A 50/60 Hz
Dimensions and Weight (Approx.)	W315×D350×H700 mm, tester 20 kg, power supply box: 5 kg

---

Overview of FLOW CUP

The FLOW CUP is used to evaluate the flowability and viscosity of paint according to the cup method.
The cup is to be selected so that the flow time of the paint through the orifice becomes 30 to 100 seconds.

Reference Standards

JIS K5600-2-2, ISO 2431, ASTM D5125

Specification

Specifications are subject to change without notice.
Orifice Diameter	Select from ø3 mm, ø4 mm, ø5 mm, ø6 mm
Test Sample	150 ml
Accessories	Cup stand, glass plate
Options	Standard oil for calibration (kinematic viscosity 100 cSt, 200 cSt) (1 cSt = 1 mm2/s)
Dimensions and Weight (Approx.)	W180×D235×H345 mm, 2 kg (includes cup stand)

*JIS-K5400 compatible Ford cup is also available.

---

Overview of WET FILM THICKNESS GAUGE

The WET FILM THICKNESS GAUGE is to measure the ink’s wet film thickness.
The gauge is made by 3 rings. The center ring is smaller than the outer 2 rings and is eccentric so that when it is rolled on a wet paint, the operator can read the scale when the center ring touches the painted surface.

Reference Standards

JIS (K5400), K5600-1-7, ISO 2808

Specification

Specifications are subject to change without notice.
Scale	0–25 µm, 0–50 µm, 0–100 µm, 0–200 µm
Dimensions (Approx.)	Diameter ø60×27 mm
Weight (Approx.)	0.3 kg *Other specifications are also available.

---

Overview of VOLUME DENSITY METER

This density meter measures the apparent density(g/ml) and apparent specific volume(ml/g) of pigment powder.
It consists of a sieve, a funnel, and a density cup.

Reference Standards

JIS K5101

Specification

Specifications are subject to change without notice.
Density Cup Capacity	30 ml
Sieve Aperture	0.5 mm
Accessories	Brush, Spatula, Glass Beaker, Density Cup
Dimensions/ Weight (Approx.)	W225 × D200 × H270 mm, 1.3 kg
