No.519
PAINT FILM DRAWING TESTER
Overview of PAINT FILM DRAWING TESTER
This tester is used to evaluate the adhesiveness of fluorine resin coating film on metallic surface according to the drawing test method.
The operator is to draw a spiral 25 times on the coating surface with a steel needle that is applied with a prescript load to judge the adhesiveness of the coating film.
Reference Standards
JIS K6894 8.6.1 Spiral scoring test
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Specimen Base | 54 × 120 mm |
| Stroke | Max. 72 mm |
| Drawing | Spiral φ10 mm or φ9 mm, Spacing 2.5 mm |
| Weight Load | Initial 100 g to Max. 2,000 ｇ (Standard 500 gf) |
| Needle | φ3 ± 0.05 mm, L23 ± 1 mm, Top Angle 60 ± 5° |

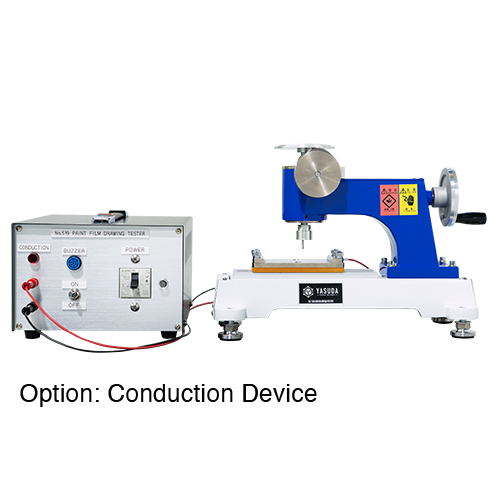

| Option | Heating Plate Spec, Conduction Device |
| Power Source | AC 100 V, 1-Phase, 1 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | Tester Body: W365 × D140 × H300 mm, 8 kg Conduction Device: W250 × D360 × H250 mm, 5 kg |
