No.548-YKG

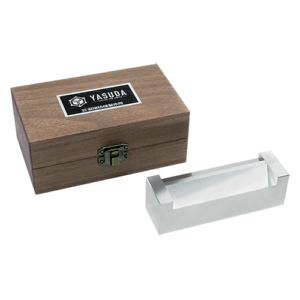

FILM APPLICATOR (DOCTOR BLADE)
Overview of FILM APPLICATOR (DOCTOR BLADE)
The FILM APPLICATOR (DOCTOR BLADE) is used to make a constant thickness of coating surface of ink, colorant, and paint.
Spreading the test specimen on the testing board, the operator is to slide the blade to himself at a constant speed to coat the surface.
Reference Standards
JIS K5101, (K5400)
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Coating Thickness | 2 to 10 mil [1 mil = 25.4 µm] |
| Coating Width | 80 mm |
| Dimensions/ Weight (Approx.) | W100 × D30 × H30 mm, 0.7 kg |
*Please contact us for custom models.
*Double-side, Triple-side and Four-side Variations are also available.
