No.551-AUTO CROSS CUT MACHINE Operation & motion video

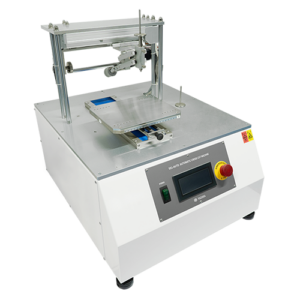

No.551 CROSS CUT MACHINE（AUTOMATIC）
- This is a fully automated cross cutting machine, which cuts paint-coated samples in a grid pattern (aka cross cut method).
- The cutting blade is set perpendicular to the sample, and the necessary weights are added to the blade.
- All cuts penetrate through the paint coatings and to the surface of the substrate. Once the cuts are made, the specimen is brushed, then applied with standard-specified tape. The tape is peeled within 5minutes after it is applied.
- The number of cuts and the pitch can be set via touch panel. No.551-AUTO-2 is additionally featured with 90° automatic specimen rotation. Cuts are more precise compared to that of manual cross cutting.
Specification
Specifications are subject to change without notice.
| Specifications are subject to change without notice. | ||
| Model |
No.551-AUTO-1
|
No.551-AUTO-2
|
|
Test Table |
240×200 mm |
|
|---|---|---|
|
90˚ Rotation |
Manual | Automatic |
|
Max. Sample Dimensions |
210×200 mm (cut area 140×140 mm) |
|
|
Distance Between Cuts |
0.5, 1.0, 1.5, 2.0, and 3.0 mm |
|
|
Number of Cuts |
Free input setting (standard value 6 or 11 cuts) |
|
|
Cutting Speed |
5–150 mm/s (0.1 mm/s increments) |
|
|
Test Load |
Counterweight and additional test weights, select from 10–400 gf and 50–1,050 gf |
|
|
Cutting Tool |
Cutting blade |
|
|
Safety Device |
Emergency stop button |
|
|
Accessories |
Weights*, cutting height gauge, cutting blade holder, cutting blade (spare), hex key, open-end wrench |
|
|
Options |
Steel needle, holder for steel needle, sapphire needle, holder for sapphire needle, safety cover |
|
|
Power Source |
AC 100 V 1-phase 10 A 50/60 Hz |
|
|
Dimensions and Weight (Approx.) |
W630×D750×H700 mm, 90 kg |
|
*The mass of the test weights vary according to the selected test load.
