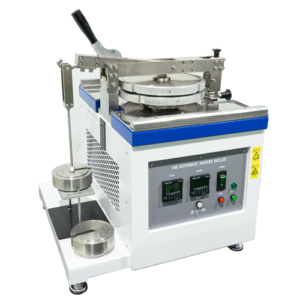

No.546 AUTOMATIC HOOVER MULLER
JIS K5101
- This machine is used to grind and scatter colorant according to the Hoover Muller’s method.
- After grinding and scattering the colorant, the operator is to use the GRIND METER to check the grind level of the test specimen.
*The photo includes optional features. For detailed specifications, please contact us.
Specification
| Specifications are subject to change without notice. | |
| Glass Plate | φ185 mm, Upper and Lower 1 pc each |
| Plate Rotation Speed | 100 rpm |
| Weight Load | 50 lbf, 100 lbf, 150 lbf [50 lbf = 22.68 kgf] |
| Counter | 6 Digits Preset Counter, 6 Digits Running Counter |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W500 × D500 × H600 mm, 55 kg |
Contact Us For over 70 years, Yasuda Seiki’s testing machines have supported quality control and research & development across various industries, meeting the diverse needs of our clients.
