Overview of AUTOMATIC FILM APPLICATOR
This machine enables the operator to make a coating surface of ink, colorant, and paint automatically.
The machine will coat at a constant speed and pressure, solving the problems of unevenness and individual variability when coating.
The plate can be made with vacuum holes so that the operator can coat paper and even polyester film under a vacuum state.
The machine can be used together with a BARCOATER and APPLICATOR.
Reference Standards
JIS K5101, (K5400), ASTM D823
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Model | No.542-AB |
Max. Test Panel Size | A4: width 295×length 390 mm (grade 303 stainless steel) |
Vacuum Area | A4: width 200×length 285 mm, suction hole ø1 mm (110 holes) |
Coating Speed | 20–300 mm/s (60 Hz), 20–260 mm/s (50 Hz), |
Accessories | Weights for coating rods (3 types), support for film applicator, squeegee, tray |
Options | Vacuum pump, coating rod, film applicator |
Power Source | AC 100 V 1-phase 5 A 50/60 Hz |
Dimensions and Weight (Approx.) | A4: W570×D450×H420 mm, 45 kg |

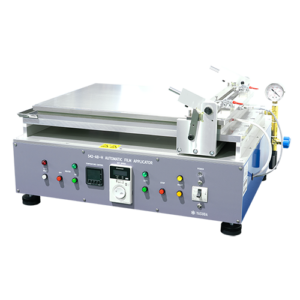

Overview of AUTOMATIC FILM APPLICATOR (HEATING PLATE TYPE)
This model is equipped with a heat platen and can produce temperatures up to 120 °C.
Reference Standards
JIS K5101、(K5400)、ASTM D823
Specification
| Specifications are subject to change without notice. | |
|---|---|
| Model | No.542-AB-H |
Max. Test Panel Size | A4: width 295×length 390 mm (grade 303 stainless steel) |
Vacuum Area | A4: width 200×length 285 mm, suction hole ø1 mm (110 holes) |
Temperature | Max. 120˚C *The temperature can be set at one point only. |
Coating Speed | 20–300 mm/s (60 Hz), 20–260 mm/s (50 Hz), |
Accessories | Weights for coating rods (3 types), support for film applicator, squeegee, tray |
Options | Vacuum pump, coating rod, film applicator |
Power Source | AC 100 V 1-phase 10–15 A 50/60 Hz |
Dimensions and Weight (Approx.) | A4: W570×D450×H430 mm, 47 kg |
