Evaluating low temperature resistance of vinyl leather | VINYL LEATHER CLOTH COLD PROOF TESTER / No.201

• No.201 VINYL LEATHER CLOTH COLD PROOF TESTER
• No.201-R VINYL LEATHER CLOTH COLD PROOF TESTER (WITH REFRIGERATING MACHINE)

Overview of VINYL LEATHER CLOTH COLD PROOF TESTER

This tester is used to conduct a cold temperature resistance test on vinyl leather cloth, plastic, rubber cloth.
Dropping a falling body to the test specimen that has been attached to an anvil placed in a low temperature oven for 5 minutes, the operator is to check for cracks caused to the test specimen.
Dry ice is used for cooling with this model.

Reference Standards

JIS K6404-3,(K6404-13), K6772

Specification

Specifications are subject to change without notice.
Model	No.201
Number of Clamps	6 clamps
Test Sample	Width 20 mm, length 100 mm (when folded in two)
Clamp	Width 20 mm, depth 5 mm
Falling Weight	Total weight 2.5 kg
Drop Height	50 mm
Temperature	Up to -40℃ (heat-transfer medium with dry ice)
Heat-Transfer Medium	Approx. 12 L
Power Source	AC 100 V 1-phase 3 A 50/60 Hz
Dimensions and Weight (Approx.)	W570×D400×H650 mm, 50 kg

---

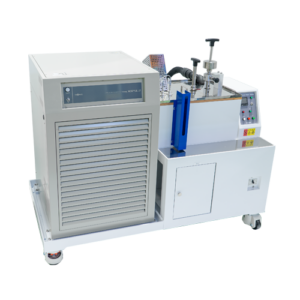

Overview of VINYL LEATHER CLOTH COLD PROOF TESTER (WITH REFRIGERATING MACHINE)

This model is equipped with a refrigerator, completely removing the need of dry ice.

Reference Standards

JIS K6404-13, K6772

Specification

Specifications are subject to change without notice.
Model	No.201-R
Number of Clamps	6 clamps
Test Sample	Width 20 mm, length 100 mm (when folded in two)
Clamp	Width 20 mm, depth 5 mm
Falling Weight	Total weight 2.5 kg
Drop Height	50 mm
Temperature	Up to -40℃ (refrigeration control with heat-transfer medium)
Heat-Transfer Medium	Approx. 16 L
Power Source	AC 200 V 3-phase 20 A 50/60 Hz
Dimensions and Weight (Approx.)	W1250×D650×H1,100 mm, 295 kg
