Evaluating torsional stiffness of plastic materials | CLASH-BERG TORSION FLEXIBILITY TESTER / No.170

• No.170 CLASH-BERG TORSION FLEXIBILITY TESTER (MANUAL)
• No.170-AUTO CLASH-BERG TORSION FLEXIBILITY TESTER (AUTOMATIC)

Overview of CLASH-BERG TORSION FLEXIBILITY TESTER (MANUAL)

This tester is used to measure the softening temperature of plastic.
The test specimen is to be attached to the upper and lower Chucks of the tester and then dipped into water which the temperature is raised at a constant speed.
At every 5 °C the water temperature has rises, the operator is to leave the test specimen untouched for 3 minutes.
After the 3 minutes have passed, twisting torque is to be added to the test specimen so that the rigidity coefficient can be calculated from the twisting angle.
The softening temperature will be acquired from the temperature-rigidity coefficient curving line.

Reference Standards

JIS (K6734), (K6745), K6924-2, ASTM D1043, ISO 458

Specification

Specifications are subject to change without notice.
Model	No.170
Test Sample	Width 6.35 ± 0.03 mm, length 64 mm, thickness 0.8–1.5 mm
Sample Span	40 mm
Angle Scale	0–360˚ (graduation 1˚) *Rotation up to 270˚
Temperature	-60–100℃ (Use dry ice for low temperature)
Heating Rate	2℃/min
Torque Mechanism	Torque pulley
Test Weights	5 g, 10 g, 20 g, 50 g
Accessories	Dewar flask, thermometer (2 pcs), hole punch, sample gauge
Power Source	AC 100 V 1-phase 10 A 50/60 Hz
Dimensions and Weight (Approx.)	W300×D400×H900 mm, 36 kg

---

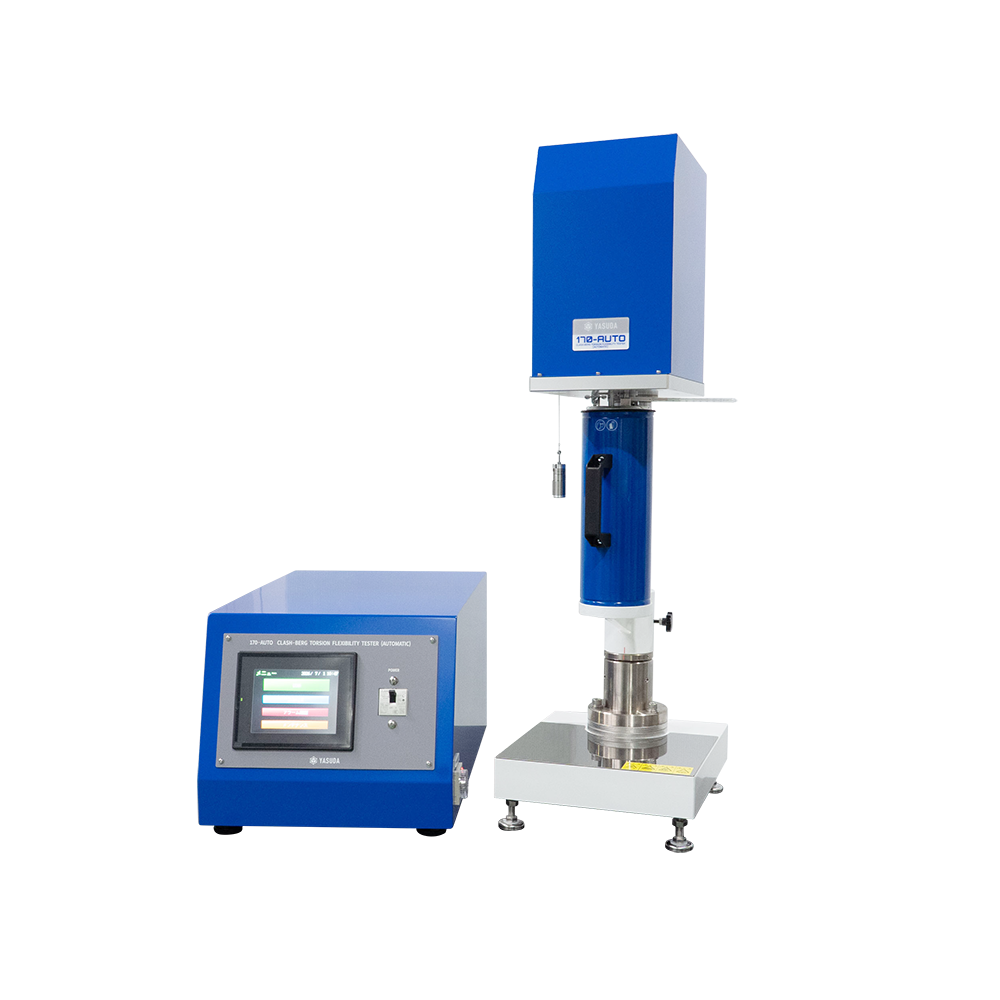

Overview of CLASH-BERG TORSION FLEXIBILITY TESTER (AUTOMATIC)

This tester reads the twisting angle of the test specimen by encoder to calculate the rigidity coefficient.
The temperature-rigidity coefficient curving line will be displayed on the PC to acquire the softening temperature.

Reference Standards

JIS (K6734), (K6745), K6924-2, ASTM D1043, ISO 458

Specification

Specifications are subject to change without notice.
Model	No.170-AUTO
Test Sample	Width 6.35 ± 0.03 mm, length 64 mm, thickness 0.8–1.5 mm
Sample Span	40 mm
Angle Scale	0–270˚ (graduation 0.1˚), Measured by rotary encoder
Temperature	-60–100℃ (Use dry ice for low temperature)
Heating Rate	2℃/min
Torque Mechanism	Torque pulley
Test Weights	5 g, 10 g, 20 g, 50 g
PC Software	Available for Windows
Accessories	Dewar flask, thermometer (2 pcs), hole punch, sample gauge
Options	Sample cutter
Power Source	AC 100 V 1-phase 10 A 50/60 Hz
Dimensions and Weight (Approx.)	Tester:W320×D400×H1,230 mm, 50 kg Control Panel:W350×D460×H355 mm, 17 kg
