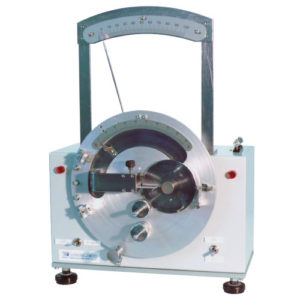

No.445 ELMENDORF TYPE TEARING RESISTANCE TESTER FOR TEXTILE
JIS (K6404-4), K-6404-2, (L1018), (L1085), L1096, ISO 9290
- This tester is used to evaluate tearing resistance of textile, rubber, and plastic film according to the pendulum method.
- Swinging the fan shaped pendulum from a prescript height to tear the test specimen that has been cut beforehand, the operator is to read the workload to calculate the tearing resistance.
Specification
| Specifications are subject to change without notice. | |
|
Capacity |
0–8 N/0–16 N, 0–16 N/0–32 N, 0–32 N/0–64 N,0–64 N/0–128 N (dual scale) |
|
Test Sample |
Width 63 ± 1 mm, length 100 ± 2 mm |
|
Slit Length |
20 mm (remaining length 43.0 ± 0.5 mm) |
|
Jaws |
Width 45 mm, depth 16.0 ± 0.5 mm, distance between the two pairs of vises 2.8 ± 0.3 mm |
|
Options |
Pneumatic vise |
|
Dimensions and Weight (Approx.) |
W600×D200×H630 mm, 30 kg |
