No.185 PARALLEL PLATE PLASTOMETER

JIS C3005, C3307, K6723, ASTM D621

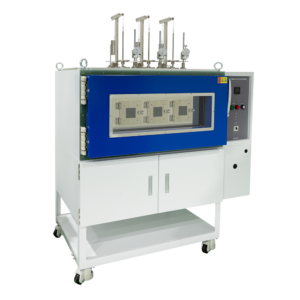

No.185 PARALLEL PLATE PLASTOMETER

  • This tester is to conduct heat deformation tests to rubber and plastic electric insulated wires.
  • Placing the test specimen between the parallel plates and adding prescript load and heat for 30 minutes, the operator is to measure the reduction rate in thickness of the test specimen before and after the test has been conducted.

Specification

Specifications are subject to change without notice.
Model No.185　PARALLEL PLATE PLASTOMETER
Stations 1, 3, or 5 Stations (3 kinds)
Weight Load Max. 50 N (Dead Weight)
Displacement Measurement Analog Dial Gauge: Scale 1/100 mm
Stroke Max. 10 mm
(Option: Digital type, Stroke Max. 25 mm)
Temperature Range Max. 200 °C
Parallel Plate φ40 mm
(Option: φ3/4″ or φ3/8″ for UL)
Accessories Metal Rod (R 5 mm)
Option Software, Oven Light
Power Source AC 200 V, 1-Phase, 15 to 30 A, 50/60 Hz
Dimensions/ Weight (Approx.) 1 Station
W780 × D825 × H1,800 mm/ 142 kg
3 Stations
W1,250 × D1,120 × H1,800 mm/ 286 kg

Inquiry Form

No.185-AUTO PARALLEL PLATE PLASTOMETER (AUTOMATIC)

JIS C3005, C3307, K6723, ASTM D621
No.185-AUTO PARALLEL PLATE PLASTOMETER (AUTOMATIC)

  • This tester is to conduct heat deformation tests to rubber and plastic electric insulated wires.
  • Placing the test specimen between the parallel plates and adding prescript load and heat for 30 minutes, the operator is to measure the reduction rate in thickness of the test specimen before and after the test has been conducted.
  • The operator is to set the pre-heating time and the testing time on the touch panel, and then the tester will load, unload, and show and print the test data automatically.

Specification

Specifications are subject to change without notice.
Model No.185-AUTO　PARALLEL PLATE PLASTOMETER (AUTOMATIC)
Stations 3 or 5 Stations (2 kinds)
Weight Load Max. 20 N (Dead Weight)
Displacement Measurement Differential Transducer: Scale 1/100 mm, Stroke Max. 50 mm
TouchPanel Display
Temperature Range Max. 200 °C
Parallel Plate φ40 mm
(Option: φ3/4″ or φ3/8″ for UL)
Accessories Metal Rod (R 5 mm)
Option Software, Oven Light, Mini Printer
Power Source AC 200 V, 1-Phase or 3-Phase, 15 to 30 A, 50/60 Hz
Dimensions/ Weight (Approx.) 1 Station
W1,280 × D880 × H1,800 mm/ 343 kg
3 Stations
W1,420 × D880 × H1,800 mm/ 375 kg
