No.105 WILLIAMS PARALLEL PLATE PLASTOMETER
JIS K6249, ASTM D926, ISO 7323
- Placing the specimen on the parallel plate and after adding prescribed load for a specific amount of time, the plastometer reads the thickness of the specimen and multiplies the thickness 100 times to acquire the degree of plasticity.
Specification
| Specifications are subject to change without notice. | |
| Model | No.105 WILLIAMS PARALLEL PLATE PLASTOMETER |
| Specimen | Cylindrical shape, Volume 2 ± 0.02 cm3 (φ16 mm, H10 mm) |
| Parallel Plate | Upper: φ148 mm, T11.7 mm Lower: φ148 mm, T13 mm |
| Test Load | Initial 24.5 N (2.5 kgf) to Max. 49 ± 0.05 N (5 kgf) (Standard 49 ± 0.05 N) |
| Dial Gauge | Scale 1/100 mm, Stroke Max. 20 mm |
| Software | ― |
| Accessories | Dial Gauge, Weight (4.9 N: 1 pc, 9.8 N: 2 pcs), Hexagon wrench, Set Up Disk (105-AUTO), Power Plug Adaptor (105-AUTO) |
| Option | ― |
| Power Source | ― |
| Dimensions/Weight (Approx.) | W175 × D150 × H330 mm, 7.2 kg *With Dial Gauge Attached. |
No105-AUTO WILLIAMS PARALLEL PLATE PLASTOMETER (AUTOMATIC)
JIS K6249, ASTM D926, ISO 7323
- The No.105-AUTO is the automated version of the No.105 WILLIAMS PLASTOMETER.
- The tester can show the time series graph of the thickness on the computer screen.
Specification
| Specifications are subject to change without notice. | |
| Model | No.105-AUTO WILLIAMS PARALLEL PLATE PLASTOMETER (AUTOMATIC) |
| Specimen | Cylindrical shape, Volume 2 ± 0.02 cm3 (φ16 mm, H10 mm) |
| Parallel Plate | Upper: φ148 mm, T11.7 mm Lower: φ148 mm, T13 mm |
| Test Load | Initial 24.5 N (2.5 kgf) to Max. 49 ± 0.05 N (5 kgf) (Standard 49 ± 0.05 N) |
| Dial Gauge | Scale 1/100 mm, Stroke Max. 20 mm, Digital Display Ver. |
| Software | Windows Compatible |
| Accessories | Dial Gauge, Weight (4.9 N: 1 pc, 9.8 N: 2 pcs), Hexagon wrench, Set Up Disk (105-AUTO), Power Plug Adaptor (105-AUTO) |
| Option | Heating Plate Type, Safety Cover |
| Power Source | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Dimensions/Weight (Approx.) | W365 × D250 × H506 mm, 24 kg |
No.171 COMPRESSION SET TESTER
JIS A5756, K6262, ASTM D395, ISO 815
- This tester measures the compression set of vulcanized rubber and thermo-plastic rubber at room temperature, low temperature, and high temperature to acquire the settling of the test specimen.
- The compression ratio can be set by changing the spacer.
Specification
| Specifications are subject to change without notice. | ||
| Model | No.171-A | No.171-B |
| Specimen | Large Specimenφ29.0 ± 0.5 mm T12.5 ± 0.5 mmSmall Specimen φ13.0 ± 0.5 mm |
|
| Spacer | Large Specimen8 pcs, T9.38 mm
(25 % Compression) Small Specimen 8 pcs, T4.73 mm |
Large Specimen12 pcs, T9.38 mm
(25 % Compression) Small Specimen 12 pcs, T4.73 mm |
| Dimensions/ Weight (Approx.) | W180 × D90 × H130 (15 × 3 Stages) mm, 6 kg | W290 × D150 × H145 (20 × 3 Stages) mm, 20 kg |
No.184-A MCBURNEY INDENTATION TESTER
JIS A1454, A5705
- This tester is to test the indentation of floor material.
- Adjusting the dial gauge to 0 within 5 seconds after setting an initial load of 9 N, the operator is then to add 133 N of load to the test specimen and read the indentation depth when 1 minute has past.
Specification
| Specifications are subject to change without notice. | |
| Weight Load | Initial 9 N, Total 133 ± 1N |
| Indenter | Hemispherical shape, φ6.35 ± 0.01 mm |
| Dial Gauge | Scale 1/100 mm, Stroke Max. 10 mm |
| Dimensions/ Weight (Approx.) | W180 × D180 × H360 mm, 20 kg |

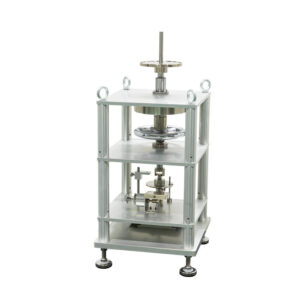

No.184-B RESIDUAL INDENTATION TESTER
JIS A1454, A5705
This tester is to test the residual indentation of floor material.- The operator is to apply 356 N of load to the test specimen for 10 minutes (if the test specimen is foamed material 222 N of load for 5 minutes).
- After the testing time has past, remove the load and read the indentation depth of the test specimen when 60 minutes has passed after the load has been removed.
Specification
| Specifications are subject to change without notice. | |
| Weight Load | 356 ± 1 N, 222 ± 1N |
| Indenter | Standard: Flat shape, φ4.5 mm Famed Material: Hemispherical shape, φ19 mm |
| Dial Gauge | Scale 1/100 mm, Stroke Max. 10 mm |
| Option | Automatic Loading Device, Timer |
| Dimensions/ Weight (Approx.) | W370 × D400 × H820 mm, 50 kg |
