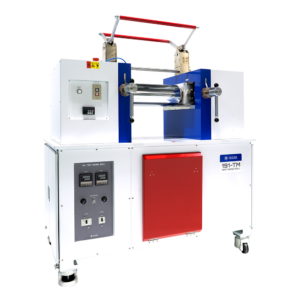

No.191-TM/WM TEST MIXING ROLL
- This machine is designed compactly so that it can be installed in testing labs.
- The machine takes special care in safety by equipping variety of emergency stop systems.
- The machine can be assorted with electric heating or steam heating system.
No.191-TM/WM OPERATION VIDEO (Reflector detection type brake device)
Specification
| Specifications are subject to change without notice. | ||
| Model | No.191-TM TEST MIXING ROLL (Electric Heating) |
No.191-WM TEST MIXING ROLL |
| Roll | φ3″ × 8″、 φ4″ × 8″、 φ5″ × 12″、 φ6″ × 15″、 φ8″ × 20″(5 kinds) | φ3″ × 8″、 φ4″ × 8″、 φ5″ × 12″、 φ6″ × 15″、 φ8″ × 20″(5 kinds) |
| Heating Method | Electric Heating (Cartridge Heater) | Steam Heating※1, Hot water Heating, Oil Heating (Rotary Joint) |
| Temperature Range | Max. 200 °C (Option: Max. 300 °C) | Max. 200 °C |
| Gear Ratio | 1：1.25 | 1：1.25 |
| Roll Rotation Speed | Front 12.5 to 31.25 rpm, Rear 10 to 25 rpm | Front 12.5 to 31.25 rpm, Rear 10 to 25 rpm |
| Safety Device | Knee Punch Stop Plate, Emergency Stop SW, Overload Protecting Metal Breaker (Option: Y-Shape type Emergency Stop Bar, Area Optical Sensor, Inverse Rotation Device) |
Knee Punch Stop Plate, Emergency Stop SW, Overload Protecting Metal Breaker (Option: Y-Shape type Emergency Stop Bar, Area Optical Sensor, Inverse Rotation Device) |
| Oiler | Needle Valve type | Needle Valve type |
| Accessories | Shifting Plate: 1 set, Mill Pan, High-Temp. Lubricant | Shifting Plate: 1 set, Mill Pan, High-Temp. Lubricant |
| Option | Variable Speed Control Spec, Digital Temperature Controller, Automatic Lubricating Device, Doctor Device, Hot Water Circulation Tank (Only for WM Model), Oil Circulating Device (Only for WM Model) |
Variable Speed Control Spec, Automatic Lubricating Device, Doctor Device, Heating Medium Circulation Tank ( Choose Hot water or Oil ) |
| Power Source | AC 200 V, 3-Phase, 20 to 50 A, 50/60 Hz | AC 200 V, 3-Phase, 20 to 50 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | Differ by Specifications. | Differ by Specifications. |
*1 Vapor Pressure of 1.5 MPa or more
