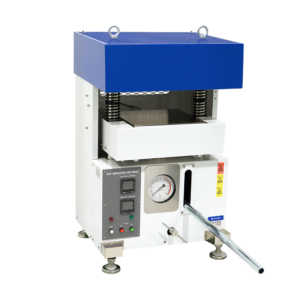

No.219 BENCHTOP HOT PRESS
- This pressure compacting machine is used to compress plastic and rubber.
- It is designed compactly so that it can be installed in testing labs.
Specification
| Specifications are subject to change without notice. | |
| Platen Size | 200 × 200 mm |
| Platen Opening | Max. 90 mm |
| Cylinder Diameter | φ45 mm |
| Maximum Force | 100 kN (Hydraulic 62.9 MPa) |
| Temperature Range | Max. 300 °C (Option: Max. 400 °C) |
| Option | Water Cooling Platan |
| Power Source | AC 200 V, 1-Phase, 20 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W465 × D400 × H781 mm, 169 kg |
