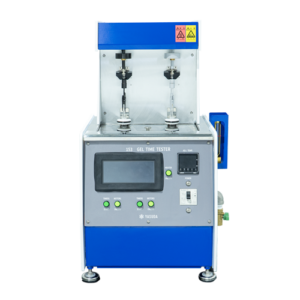

No.153 GEL TIME TESTER (MAGNET TYPE)

  • This tester is made to easily measure the gelatinization time of thermoset plastic resin.
  • The operator is to put the test specimen into the test tube with a rotating rotor.
  • As the gelatinization progresses and a certain torque forms in the test specimen, the magnetic coupling system will drop the rotor to indicate that the test specimen has gelled.



No.153-GTR GEL TIME TESTER (TORQUE METER TYPE)

No.153-GTR GEL TIME TESTER (TORQUE METER TYPE)

  • This tester continuously records the time series variation of torque during the gelatinization process of thermoset plastic resin.



No.153 / No.153-GTR Specification

Specifications are subject to change without notice.
Model No.153　GEL TIME TESTER
(MAGNET TYPE)		 No.153-GTR　GEL TIME TESTER
(TORQUE METER TYPE)
Hangings 2 or 5 Hangings (2 kinds) 1 Hanging
Detecting Torque 3.7 to 4.0 gf⋅cm Max. 20.0 mN⋅m
Temperature Range Max. 200 °C Max. 200 °C
Rotor Rotation Speed 24 rpm (60 Hz), 25 rpm (50 Hz) 24 rpm (60 Hz), 25 rpm (50 Hz)
Timer Max. 999,999 s or Max. 99 hr 59 min 59 sec Max. 999,999 s or Max. 99 hr 59 min 59 sec
Accessories Rotor (φ5 × 110 mm), 100 pcs each
Test Tube (Outer φ12 × 90 mm): 100 pcs each		 Rotor (φ5 × 110 mm), 100 pcs each
Test Tube (Outer φ12 × 90 mm): 100 pcs each
Option Silicon Oil(2 L) Silicon Oil(2 L), Software, Chart Recorder
Power Source AC 100 V, 1-Phase, 10 A, 50/60 Hz AC 100 V, 1-Phase, 10 A, 50/60 Hz
Dimensions/ Weight (Approx.) 2 Hangings:
W380 × D410 × H610 mm/ 28 kg
5 Hangings:
W730 × D420 × H670 mm/ 53 kg		 W570 × D375 × H720 mm/ 30 kg
