No.102 GEER AGING OVEN
JIS A5756、B7757、C3005、K6257、K6723、K7212、K7368、ASTM D573、D5374、D5423、E145、UL-746B、IEC-60216-4-1、ISO 188、4577
- This tester is the most widely used heat aging tester for rubber and plastic.
- Unlike ordinary heating ovens, the GEER AGING OVEN satisfies specifications indispensable to aging tests such as closed mechanism, uniform air velocity in the oven, ventilation rate measurement, and rotating specimen rack, which offers excellent reproducibility and reliable test results.
No.102 Specification
| Specifications are subject to change without notice. | ||
| Inner dimensions | W450 × D450 × H500 mm | W600 × D600 × H600 mm |
| Entire Heated Space Volume | 225,225 cm3 | 417,600 cm3 |
| Temperature range | Room Temperature + 20 to 300 °C * | Room Temperature + 20 to 300 °C * |
| Air velocity | Low: 0.5 ± 0.1 m/s, High: 1.0 ± 0.2 m/s (Controlled vie touch panel) |
Low: 0.5 ± 0.1 m/s, High: 1.0 ± 0.2 m/s (Controlled vie touch panel) |
| Air Exchange Rate Measurement | Power Consumption Method | Power Consumption Method |
| Air Exchange Rate Control | Adjustable between 3 to 10 times/hr, 5 to 20 times/hr or over 60 times/hr | Adjustable between 3 to 10 times/hr, 5 to 20 times/hr or over 60 times/hr |
| Hanger Rotation Speed | 7.5 ± 2.5 rpm | 7.5 ± 2.5 rpm |
| Safety Device | Overheat Detection Device, Circuit Braker | Overheat Detection Device, Circuit Braker |
| Accessories | Specimen Hanger 2 stages, Clip 40 pcs, Shelf 2 pcs | Specimen Hanger 2 stages, Clip 40 pcs, Shelf 2 pcs |
| Option | CSV Output, Analog Voltage Output, UL Type Air Exchange Rate 100 to 200 times/hr modification | CSV Output, Analog Voltage Output, UL Type Air Exchange Rate 100 to 200 times/hr modification |
| Power | AC 200 V, 3-Phase, 30 A, 50/60 Hz （When Air Exchange Rate is 100 to 200 times/hr; AC 200 V, 3-Phase, 40 A, 50/60 Hz） |
AC 200 V, 3-Phase, 40 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | SHF-S: W1,180 × D700 × H1,560 mm/ 300 kg SHF-SA: W1,250 × D700 × H1,650 mm/ 305 kg |
SHF-S: W1,350 × D900 × H1,650 mm/ 372 kg SHF-SA: W1,400 × D900 × H1,750 mm/ 375 kg |
* Please contact us for 400 °C Type.
Models
| Specifications are subject to change without notice. | |
| SHF-S | Equipped with air exchange rate measurement/display via touch panel. Damper is opened/closed manually. |
| SHF-SA | Equipped with air exchange rate measurement/display via touch panel. Automatic Damper Control. |

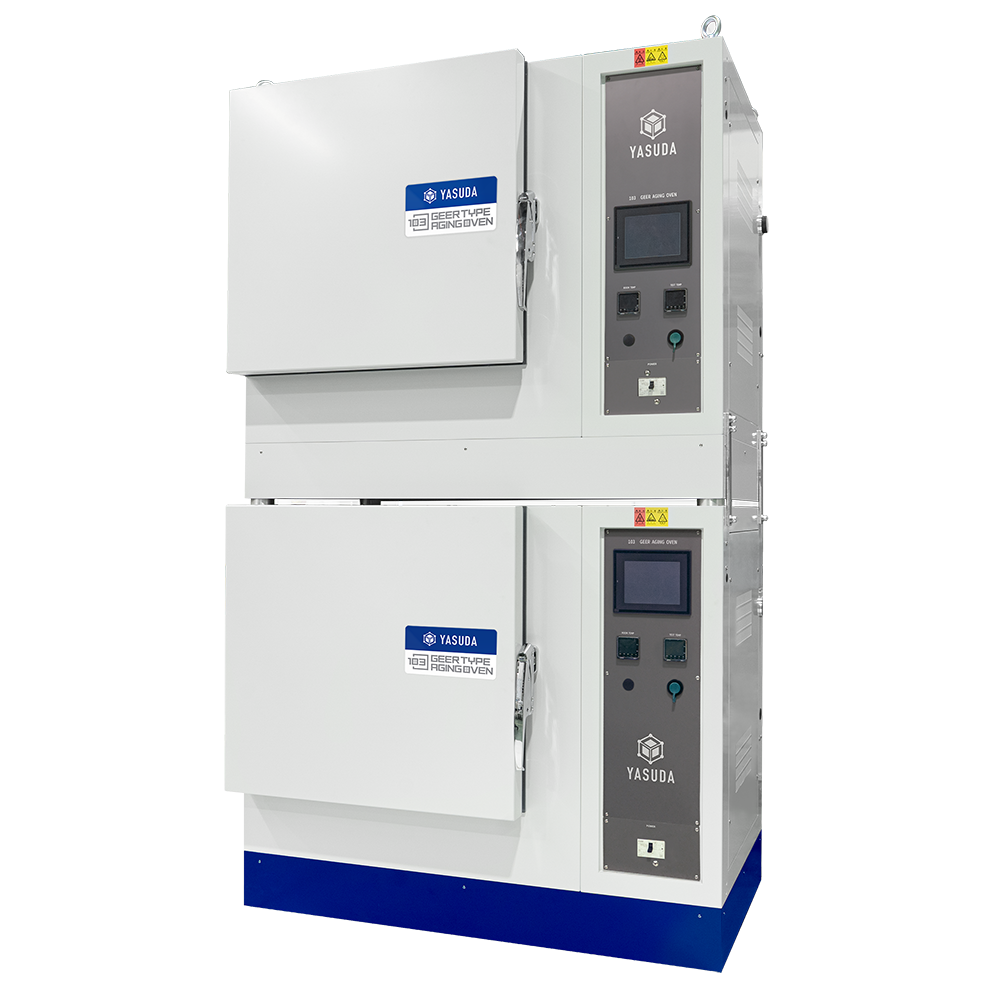

No.103-S-U/-S-L GEER AGING OVEN
(STACKABLE TYPE)
| JIS A5756、B7757、C3005、K6257、K6723、K7212、K7368、ASTM D573、D5374、D5423、E145、UL-746B、IEC-60216-4-1、ISO 188、4577 |
A compact version of the No.102 Geer Aging Oven, designed for stackable 2-tier installation.
Necessary settings, such as average air velocity, can be configured via the touch panel. This model is the best solution for those wanting to utilize space.
*The chamber size is only available in the standard size (W450 × D450 × H500 mm).
| Models |
Upper Model: No.103-S-U / No.103-SA-U |
| Chamber Door | Single Door |
| Inner dimensions (Standard Type) | W450 × D450 × H500 mm |
| Oven Volume | 207,658cm3 |
| Adjustable Temperature Range | +20 – 300℃ |
| Average Air Velocity | Low: 0.5 ± 0.1 m/s High: 1.0 ± 0.2 m/s |
| Air Exchange Rate Calculation | Energy Consumption Method |
| Air Exchange Rate Control | Adjustable between 5 – 10 times/hr, and 60 ≤ times/hr, |
| Sample Hanger Rotation | 7.5 ± 2.5rpm |
| Safety Measures | Overheat Detection Device, Power Leakage Breaker Switch |
| Accessories | Two-Tier Round Sample Hanger, 40 Clips, 2 Square Net Shelves |
| Options | UL Standard Compatibility Specifications, CSV Output Specifications (LAN/USB), Analog Voltage Output Specifications, Signal Tower |
| Power | AC 200 V, 3-Phase, 40 A, 50/60 Hz |
| Tester Dimensions | W1350 (1150) × D950 × H950 mm |
| Tester Weight | Approx. 290 kg |
* Specifications are subject to change without notice.
* The design of the product is subject to change without notice.
