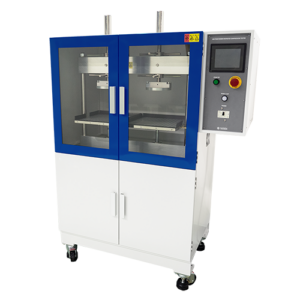

No.260 FOAM RUBBER REPEATED COMPRESSION TESTER

JIS (K6382)、K6400-4

260_FOAM RUBBER REPEATED COMPRESSION TESTER

  • This tester is used to repeatedly test compression residual strain of polyurethane foam and latex foam soft material according to the constant displacement method.
  • Placing the test specimen between the two parallel plates and continuously repeating the compression to the test specimen 80,000 times at a compressing power so that the test specimen’s thickness becomes 50 % of the initial size.
  • 30 minutes after the test specimen has been repeatedly compressed, the decreasing rate of the test specimen’s thickness is to be measured.

Specification

Specifications are subject to change without notice.
Hanging 2 Hangings
Specimen T20 mm or More, Width or Length 50 mm or More
Compression Platen 310 × 310 mm, Vent φ6 mm (Pitch 20 mm)
Compression Stroke 10 to 100 mm (2 Lines Adjustable)
Compression Speed 60 〜 180 times/min
Counter 6 Digits Preset Counter
Option Safety Cover, Emergency Stop Switch
Power Source AC 200 V, 3-Phase, 15 A, 50/60 Hz
Dimensions/ Weight (Approx.) W1,130 × D600 × H1,460 mm/ 292 kg
