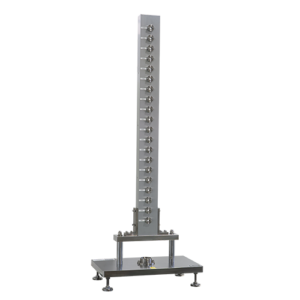

No.517 DU PONT TYPE FALLING IMPACT TESTER
JIS (K5400), K5600-5-3, ASTM D2794(Plastic), ISO 6272
- This tester is used to evaluate the falling weight endurance on coated film and point impact strength for plastic film.
- Attaching the test specimen between the die and the punch, the operator is to drop a weight from a certain height.
- After the weight has been dropped the operator is to check for transformations, cracks, and peels caused by the impact.
- The tester can also be assorted with a low temperature oven (L type).
Specification
No.517
| Specifications are subject to change without notice. | ||
| Falling Height | 50 to Max. 500 mm (Pitch 50 mm) | 50 to Max. 1,000 mm (Pitch 50 mm) |
| Falling Weight | 300 g, 500 g and 1,000 g | 1,000 g, 2,000 g |
| Punch | R1/16″, R1/8″, R3/16″ and R1/4″ | φ1/2″ and φ0.625″ |
| Die | R1/16″, R1/8″, R3/16″ and R1/4″ | φ0.64″ |
| Test Plate | Steel Plate, 200 × 100 × T0.6 mm | ― |
No.517 DU PONT TYPE FALLING IMPACT TESTER
| Specifications are subject to change without notice. | ||
| Dimensions/ Weight (Approx.) | W500 × D300 × H840 mm, 45 kg | W500 × D300 × H1,350 mm, 50 kg |

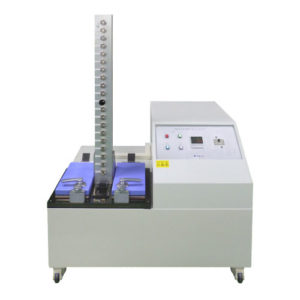

No.517-L DU PONT TYPE FALLING IMPACT TESTER (WITH REFRIGERATING MACHINE)
JIS (K5400), K5600-5-3, ASTM D2794(Plastic), ISO 6272
- This model is equipped with a low temp.
- chamber and can be used for low temp. impact testing.
Specification
No.517-L DU PONT TYPE FALLING IMPACT TESTER (WITH REFRIGERATING MACHINE)
| Specifications are subject to change without notice. | ||
| Temperature Range | -35 to 60 °C (Refrigerator) | -35 to 60 °C (Refrigerator) |
| Power Source | AC 200 V, 3-Phase, 20 A, 50/60 Hz | AC 200 V, 3-Phase, 20 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W1,000 × D1,000 × H1,600mm, 330 kg | W1,000 × D1,000 × H1,900mm, 340 kg |
