No.151 DIN ABRASION TESTER
JIS K6264-2、ISO 4649、DIN-53 516
-
- This tester is to evaluate the abrasion resistance of vulcanized rubber and thermoplastic rubber.
- By pressing the test specimen at a certain test load against the rotating drum that has an abrasive cloth on the abrading surface, the operator is to acquire the abrading mass of the test specimen. Test specimens include tires and belts.

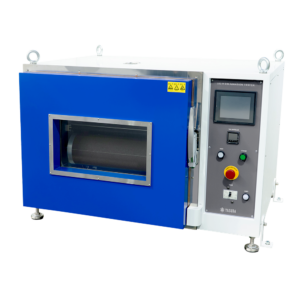

No.151-H DIN ABRASION TESTER (WITH CONSTANT TEMPERATURE CHAMBER)
JIS K6264-2、ISO 4649、DIN-53 516
- This tester can assemble a chamber in order to conduct the test at high temperature such as 100 degree.
No.151/No.151-H Specification
| Specifications are subject to change without notice. | ||
| Model | No.151 DIN ABRASION TESTER | No.151-H DIN ABRASION TESTER (WITH CONSTANT TEMPERATURE CHAMBER) |
| Test Metho | Method A and B | Method A and B |
| Specimen | Disc shape, φ16.0 ± 0.2 mm, T6 to 10 mm | Disc shape, φ16.0 ± 0.2 mm, T6 to 10 mm |
| Rotating Drum | φ150 mm, L460 mm | φ150 mm, L450 mm |
| Drum Rotation Speed | 40 ± 1 rpm | 10 to 100 rpm (Standard: 40 ± 1 rpm) |
| Feed Speed | 2.8 mm/s | 1.5 to 15 mm/s (Standard: 2.8 mm/s) |
| Weight Load | 10.0 ± 0.2 N or 5.0 ± 0.1 N | 10.0 ± 0.2 N or 5.0 ± 0.1 N |
| Abrasive Cloth | W400 mm or More, Material: Alumina, Grit P60 | W400 mm or More, Material: Alumina, Grit P60 |
| Temperature Range | ― | Max. 100 °C |
| Accessories | Suction Device (Vacuum Cleaner), Specimen Setting Gauge, Standard Specimen: 1 sheet, Metal Specimen: 2 pcs, Specimen Cutter |
Suction Device (Vacuum Cleaner), Specimen Setting Gauge, Standard Specimen: 1 sheet, Metal Specimen: 2 pcs, Specimen Cutter |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz | AC 200 V, 3-Phase, 30 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W750 × D430 × H430 mm/ 52 kg | W1,130 × D920 × H745 mm/ 255 kg |
No.152 AKRON RUBBER ABRASION TESTER
JIS K6264-2、ISO 4649
- This tester is to evaluate the abrasion resistance of vulcanized rubber and thermoplastic rubber.
- By pressing the rotating circular test specimen at a certain test load to the circumference surface of the abrading wheel, the operator is to acquire the abrading mass of the test specimen.
- The test specimen will usually be tires and shoe soles.
No.152 Specification
| Specifications are subject to change without notice. | |
| Specimen | φ63.5 ± 0.5 mm, T12.7 ± 0.5 mm, φ12.7 ± 0.1 mm |
| Specimen Rotation speed | 250 ± 5 rpm |
| Inclination Angle | 0 to 30° (Normal: 15°) |
| Test Load | 27.0N (2.75kgf), 44.1N (4.50kgf) |
| Option | Suction Device (Vacuum Cleaner) |
| Power source | AC 100 V, 1-phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W600 × D420 × H580 mm/ 77 kg |
