No.323 GURLEY TYPE DENSOMETER
JIS L1096, P8117, ASTM D726, TAPPI-T460, ISO 5636-5
- This tester is used to evaluate the air permeability of paper, cardboard, and textile.
- The operator is to measure the time that a certain amount of compressed air passes through the clamped test specimen.
- The user can choose between the manual type, which the time is measured by a stop-watch, and the automatic type, which the time is measured by digital timer.
Specification
| Specifications are subject to change without notice. | |
| Model | No.323 GURLEY TYPE DENSOMETER |
| Specimen | 50 × 50 mm |
| Clamp | φ28.6 ± 0.1 mm (Permeation Area 642 mm2) |
| Outer Cylinder | Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom |
| Inner Cylinder | Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g |
| Air Volume | 0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml) |
| Time Measuring | Manual (Stopwatch) |
| Accessories | Machine Oil |
| Option | Attachment (φ10 mm) |
| Power Source | ― |
| Dimensions/ Weight (Approx.) | W150 × D230 × H420* mm/ 20 kg *H580 mm: When Inner Cylinder is set in the test position. |

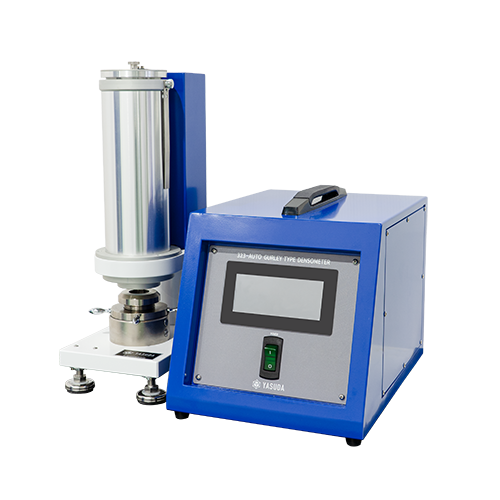

No.323-AUTO GURLEY TYPE DENSOMETER (AUTOMATIC)
JIS L1096、P8117、ASTM D726、TAPPI-T460、ISO 5636-5
- We also have an automatic model with touch panel interface which displays the impermeability (s) and ISO permeability (µm/(Pa⋅s)).
No.323-AUTO GURLEY TYPE DENSOMETER（AUTOMATIC） OPERATION & MOTION VIDEO
Specification
| Specifications are subject to change without notice. | |
| Model | No.323-AUTO GURLEY TYPE DENSOMETER (AUTOMATIC) |
| Specimen | 50 × 50 mm |
| Clamp | φ28.6 ± 0.1 mm (Permeation Area 642 mm2) |
| Outer Cylinder | Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom |
| Inner Cylinder | Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g |
| Air Volume | 0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml) |
| Time Measuring | Automatic Max. 99999.9 sec Detection: Micro Optical Senser |
| Accessories | Machine Oil |
| Option | Attachment (φ10 mm) |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | Tester Body: W150 × D230 × H420* mm/ 20 kg *H580 mm: When Inner Cylinder is set in the test position. Control panel: W250 × D450 × H280 mm/ 8 kg |
