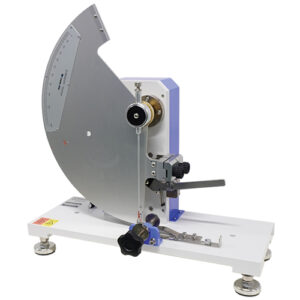

No.315 ELMENDORF TYPE TEARING RESISTANCE TESTER
JIS K7128-2, P8116, TAPPI-T414, ISO 1974, 6383-2
- This tester is used to evaluate tearing resistance of paper, paper board and plastic film according to the Elmendorf type tearing method.
- Swinging the fan shaped pendulum from a prescript height to tear the test specimen that has been cut beforehand.
- The operator is to read the workload to calculate the tearing resistance.
Specification
| Specifications are subject to change without notice. | |
| Model | No.315 ELMENDORF TYPE TEARING RESISTANCE TESTER |
| Standard Sheet | Standard 16 sheets (Scale 20 to 80 %) |
| Capacity | 0 to 1,000 mN (Scale 1 sheet/ 16 sheets) |
| Specimen | W63 ± 0.2 mm, L76 mm |
| Slit Length | 20 mm (Rest 43.0 ± 0.5 mm) |
| Chuck | W36 mm, D15.0 ± 0.1 mm, Spacing 2.8 ± 0.3 mm |
| Option | ― |
| Power Source | ― |
| Dimensions/ Weight (Approx.) | 8N ： W500 × D280 × H540 mm, 27 kg 16N ： W600 × D265 × H630 mm, 45 kg |
No.315-D ELMENDORF TYPE TEARING RESISTANCE TESTER (DIGITAL)
JIS K7128-2、P8116、TAPPI-T414、ISO 1974、6383-2
- The digital type helps the operator to read the tearing resistance directly without having to calculate.
- Insert the number of the amount of test specimen to the touch panel and the device will automatically calculate the average tearing resistance from that amount.
- Also, the digital panel is equipped with loss energy calibration function so that pure tearing resistance of the test sample can be measured.
Specification
| Specifications are subject to change without notice. | |
| Model | No.315-D ELMENDORF TYPE TEARING RESISTANCE TESTER (DIGITAL) |
| Standard Sheet | Standard 16 sheets (Scale 20 to 80 %) |
| Capacity | 0 to 1,000 mN (Scale 1 sheet/ 16 sheets) |
| Specimen | W63 ± 0.2 mm, L76 mm |
| Slit Length | 20 mm (Rest 43.0 ± 0.5 mm) |
| Chuck | W36 mm, D15.0 ± 0.1 mm, Spacing 2.8 ± 0.3 mm |
| Option | Digital Display Ver., Air Chuck |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W550 × D400 × H670 mm, 47 kg |
