No.536 DENSITY CUP

JIS (K5400), K5600-2-4, K6833, ISO 2811

No.536 DENSITY CUP

  • The DENSITY CUP is used to measure the density of liquid paint and adhesion bond according to the density cup method.
  • The operator is to measure the density at a prescript temperature and present the density in g/ml form.

Specification

Specifications are subject to change without notice.
Capacity 100 ml, 50 ml
Dimensions Outer Diameter φ45 × 90 mm (100 ml)
*10 ml Capacity can also be specially manufactured.

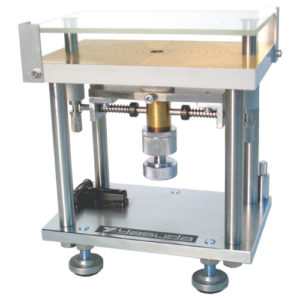

No.506 SPREAD METER

JIS K5101, K5701-1

No.506 SPREAD METER

  • This tester is used to evaluate the flow ability of colorant and ink according to the spread meter method.
  • The operator is to measure the radius of the test specimen’s spread, 60 seconds after when the upper plate which is placed on the parallel plate falls on to the test specimen.

Specification

Specifications are subject to change without notice.
Load Plate Mass 115 ± 1 g (Material: Glass or Acrylic)
Scale φ12 to φ100 (Pitch R1 mm)
Specimen Hole Inner Diameter φ10 ± 0.03 mm, D6.37 ± 0.02 mm (Capacity 0.5 ml)
Falling Height 20 ± 1 mm
Option Hot Water Circulation Tank
Dimensions/ Weight (Approx.) W160 × D110 × H180 mm, 4 kg

Inquiry Form

No.506-PCM AUTOMATIC SPREAD METER

JIS K5101, K5701-1

No.506-PCM AUTOMATIC SPREAD METER

  • This tester is the automated version of the SPRED METER.
  • By attaching a camera to see and how the test specimen spreads, the test data can also be saved and data processed by a PC with a dedicated software.

Specification

Specifications are subject to change without notice.
Measuring Time 10, 30, 60, 100, 150, 210 and 300 sec
Output Diameter after 60 sec (D), Slope(S), Intercept(IC), Yield Value(YV)
Software Windows Compatible
Option Additional Weight Loading Device
Power Source AC 100 V, 1-Phase, 5 A, 50/60 Hz
Dimensions/ Weight (Approx.) W315 × D350 × H700 mm,
Main Body 20 kg

Inquiry Form

No.505 FLOW CUP

JIS K5600-2-2, ISO 2431, ASTM D5125

No.505 FLOW CUP

      • The FLOW CUP is used to evaluate the flowability and viscosity of paint according to the cup method.
      • The cup is to be selected so that the flow time of the paint through the orifice becomes 30 to 100 seconds.

Specification

Specifications are subject to change without notice.
Orifice Diameter φ3 mm, φ4 mm, φ5 mm, φ6 mm (4 kinds)
Specimen 150 ml
Accessories Stand, Glass Plate
Option Standard Calibration Oil (100 cSt, 200 cSt) [1 cSt = 1 mm2/s]
Dimensions/ Weight (Approx.) W180 × D235 × H354 mm, 2 kg (Stand Included)
※JIS *Ford Cup can also be specially manufactured.

Inquiry Form

No.507 WET FILM THICKNESS GAUGE

JIS (K5400), K5600-1-7, ISO 2808

No.507 WET FILM THICKNESS GAUGE

  • The WET FILM THICKNESS GAUGE is to measure the ink’s wet film thickness.
  • The gauge is made by 3 rings. The center ring is smaller than the outer 2 rings and is eccentric so that when it is rolled on a wet paint, the operator can read the scale when the center ring touches the painted surface.

Specification

Specifications are subject to change without notice.
Scale 0 to 25 µm, 0 to 50 µm, 0 to 100 µm, and 0 to 200 µm (Scale 20 Divisions)
Dimensions φ60 × 27 mm
Mass 0.3 kg
*Please contact us for custom models.

Inquiry Form

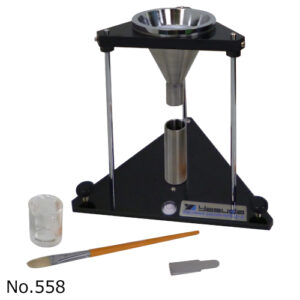

No.558 VOLUME DENSITY METER

JIS K5101

No.558 VOLUME DENSITY METER

  • This density meter measures the apparent density(g/ml) and apparent specific volume(ml/g) of pigment powder.
  • It consists of a sieve, a funnel, and a density cup.

Specification

Specifications are subject to change without notice.
Density Cup Capacity 30 ml
Sieve Aperture 0.5 mm
Accessories Brush, Spatula, Glass Beaker, Density Cup
Dimensions/ Weight (Approx.) W225 × D200 × H270 mm, 1.3 kg

Contact Us

For over 70 years, Yasuda Seiki’s testing machines have supported quality control and research & development across various industries, meeting the diverse needs of our clients.
