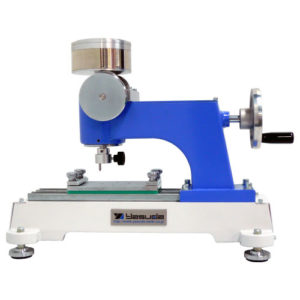

No.519 PAINT FILM DRAWING TESTER
JIS K6894 8.6.1 Spiral scoring test
- This tester is used to evaluate the adhesiveness of fluorine resin coating film on metallic surface according to the drawing test method.
- The operator is to draw a spiral 25 times on the coating surface with a steel needle that is applied with a prescript load to judge the adhesiveness of the coating film.
Specification
| Specifications are subject to change without notice. | |
| Specimen Base | 54 × 120 mm |
| Stroke | Max. 72 mm |
| Drawing | Spiral φ10 mm or φ9 mm, Spacing 2.5 mm |
| Weight Load | Initial 100 g to Max. 2,000 ｇ (Standard 500 gf) |
| Needle | φ3 ± 0.05 mm, L23 ± 1 mm, Top Angle 60 ± 5° |

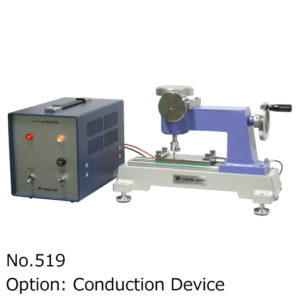

| Option | Heating Plate Spec, Conduction Device |
| Power Source | AC 100 V, 1-Phase, 1 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | Tester Body: W365 × D140 × H300 mm, 8 kg Conduction Device: W250 × D360 × H250 mm, 5 kg |
