No.516 ERICHSEN CUPPING TESTER (MANUAL)
JIS B7729, (K5400), K5600-5-2, Z2247, ISO 1520, 20482
- This tester is used to evaluate the cupping endurance of the coated film.
- Fixing the test specimen between the holder ring and the dice, the operator is to give the test specimen a pushing load to evaluate the endurance against cracks and peels of the metallic substrate when the test specimen receives a partial transformation.
Specification
| Specifications are subject to change without notice. | |
| Model | No.516 ERICHSEN CUPPING TESTER(MANUAL) |
| Test Plate | Steel Plate, T0.3 to 1.25 mm W&L Min. 70 mm to Max. 90 mm |
| Dice | Outer Diameter φ55 ± 0.1 mm Inner Diameter φ27 ± 0.05 mm Edge R0.75 ± 0.05 mm |
| Holder Ring | Outer Diameter φ55 ± 0.1 mm Inner Diameter φ33 ± 0.1 mm 0.05 mm Scale Attached |
| Punch | Hemispherical shape, φ20 ± 0.05 mm |
| Push Measuring | Digital Dial Guage: Scale 0.01 mm, Stroke Max. 20 mm, Digital Display |
| Push Speed | Manual, 0.2 mm/ 1 turn |
| Option | Mirror, Magnifier, Lighting Device |
| Power Source | ― |
| Dimensions/ Weight (Approx.) | W390 × D330 × H400 mm, 70 kg |

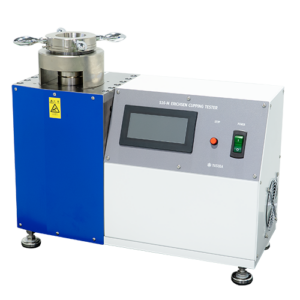

No.516-M ERICHSEN CUPPING TESTER (ELECTRIC)
JIS B7729、(K5400)、K5600-5-2、Z2247、ISO 1520、20482
- This automated version is equipped with a motorised punch which can be controlled via touch panel.
Specification
| Specifications are subject to change without notice. | |
| Model | No.516-M ERICHSEN CUPPING TESTER (ELECTRIC) |
| Test Plate | Steel Plate, T0.3 to 1.25 mm W&L Min. 70 mm to Max. 90 mm |
| Dice | Outer Diameter φ55 ± 0.1 mm Inner Diameter φ27 ± 0.05 mm Edge R0.75 ± 0.05 mm |
| Holder Ring | Outer Diameter φ55 ± 0.1 mm Inner Diameter φ33 ± 0.1 mm 0.05 mm Scale Attached |
| Punch | Hemispherical shape, φ20 ± 0.05 mm |
| Push Measuring | Rotary Encoder: Scale 0.01 mm, Stroke Max. 20 mm, Touch Panel Display |
| Push Speed | Motorized 0.2 ± 0.1 mm/s |
| Option | Mirror, Magnifier, Lighting Device |
| Power Source | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W505 × D205 × H435 mm, 70 kg |
