No.128-3S SAMPLE DIMENSIONING DEVICE (AUTOMATIC)
This device automatically measures the cross-sectional dimensions of impact test samples.
- Simply place the sample and press the measurement button on the touchscreen to continuously and automatically measure the remaining width and thickness of the notched sample. This device significantly reduces the time required for dimension measurement and improves testing efficiency.
- When connected to the impact tester, the measured dimensions of the samples are automatically transferred.
- By changing the attachment, this device can also be used for unnotched samples.
*Compatible models: 258-D (New Model), 258-L (New Model), 258-PC
Operation Video
Specification
| Model | 128-3S |
|---|---|
| Measurement Range | Width : 6 mm to 10 mm (notched samples) Width : 6 mm to 12 mm (unnotched samples) Thickness : 2 mm to 6 mm |
| Measurement Accuracy | ±0.01 mm |
| Utilities | Power supply : AC 100 V, 1-Phase, 50/60 Hz Dry compressed air : 0.2–0.5 MPa |
| Dimensions and Weight | Approx. W350 × D270 × H370 mm, Approx. 13 kg |
| Options | ・CSV Download Tool |
Similar products you may also be interested in:

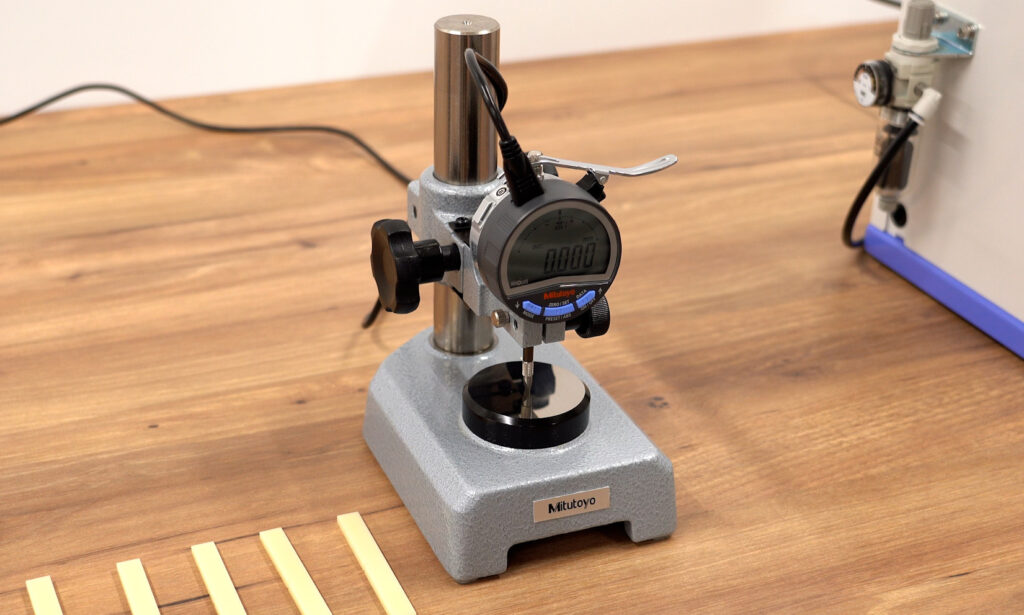

Sample Dimensioning Tool (Micrometer Type / Digital Gauge Type)
*Optional for Impact Testers.
Measure the sample dimensions using a micrometer or digital gauge, and transfer the dimensions to the impact tester manually. This simplifies the process of entering sample dimensions and enhances work efficiency.
*For details, please contact us.
For more information on impact testers, click here.
Contact Us
For over 70 years, Yasuda Seiki’s testing machines have supported quality control and research & development across various industries, meeting the diverse needs of our clients.
