No.201 VINYL LEATHER CLOTH COLD PROOF TESTER
JIS K6404-3,(K6404-13), K6772
- This tester is used to conduct a cold temperature resistance test on vinyl leather cloth, plastic, rubber cloth.
- Dropping a falling body to the test specimen that has been attached to an anvil placed in a low temperature oven for 5 minutes, the operator is to check for cracks caused to the test specimen.
Specification
| Specifications are subject to change without notice. | |
| Model | No.201 VINYL LEATHER CLOTH COLD PROOF TESTER |
| Hangings | 6 Hangings |
| Specimen | W20 mm, L100 mm (Folded) |
| Chuck | W20 mm, D5 mm |
| Falling Weight | Gross 2.5 kg |
| Falling Height | 50 mm |
| Temperature Range | Normal to -40 °C (Dry Ice & Refrigeration Medium) |
| Refrigeration Medium Amount |
Approx. 12 L |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | 約 W570 × D400 × H650 mm・約 50 kg |

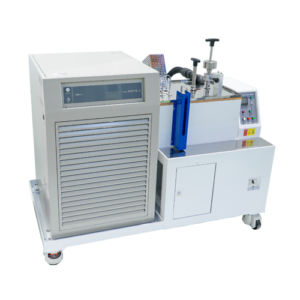

No.201-R VINYL LEATHER CLOTH COLD PROOF TESTER (WITH REFRIGERATING MACHINE)
JIS K6404-13, K6772
- This model is equipped with a refrigerator, completely removing the need of dry ice.
Specification
| Specifications are subject to change without notice. | |
| Model | No.201-R VINYL LEATHER CLOTH COLD PROOF TESTER (WITH REFRIGERATING MACHINE) |
| Hangings | 6 Hangings |
| Specimen | W20 mm, L100 mm (Folded) |
| Chuck | W20 mm, D5 mm |
| Falling Weight | Gross 2.5 kg |
| Falling Height | 50 mm |
| Temperature Range | Normal to -40 °C (Refrigerator & Refrigeration Medium) |
| Refrigeration Medium Amount |
Approx. 16 L |
| Power Source | AC 200 V, 3-Phase, 20 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W1,250 × D650 × H1,100 mm, 295 kg |
