No.318 WATER VAPOR PERMEABILITY CUP
JIS (K5400), K6549, Z0208, TAPPI-T448, T464, ISO 2528
- This tester is used to evaluate the permeability of plastic film and moisture-proof packaging material for processed paper and coating according to the cup method.
- The permeability obtained by this method will be the mass of vapour that went through the unit area of membranal material during a specific amount of time and prescript temperature and humidity conditions.
Specification
| Specifications are subject to change without notice. | |
| Specimen | φ70 mm |
| Vapour Transmission Area | 28 cm2 (Inner Diameter of Cup φ60 mm) |
| Accessories | Cup, Ring, Glass dish: 10 pcs each Guide, Base, Weight, Cutter: 1 pc each |
| Test Methods | A Method: Temperature 25 ± 0.5 °C, Humidity 90 ± 2 % B Method: Temperature 40 ± 0.5 °C, Humidity 90 ± 2 %, Air Velocity 0.5 to 2.5 m/s |
| Dimensions/ Weight (Approx.) | W450 × D250 × H230 mm, 8 kg (Including Case) |
Contact Us
For over 70 years, Yasuda Seiki’s testing machines have supported quality control and research & development across various industries, meeting the diverse needs of our clients.
Other products
- No.148 HDT Test [DTUL / VICAT], Heat Distortion (Deflection Under Load), Heat Distortion Tester
- No.210 MAGNET WIRE ABRASION TESTER (RECIPROCATING TYPE)｜YASUDA SEIKI SEISAKUSHO LTD. providing you the best material testing equipment.
- No.516 Erichsen Cupping Tester【YASUDA SEIKI】For the tester to evaluate the Cupping Endurance of the coated film
- No.307 MIT Type Folding Endurance Teste【YASUDA SEIKI】For the tester to evaluate the folding endurance of paper board, plastic film, and flexible print circuit board

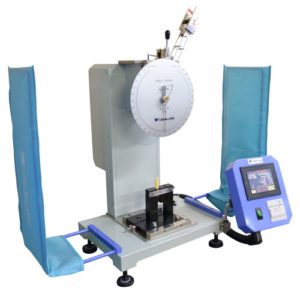

- No.258-D IMPACT TESTER (DIGITAL/TOUCHSCREEN) / No.258-PC IMPACT TESTER (DIGITAL/PC)
