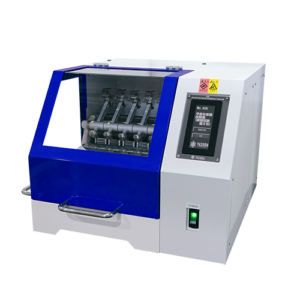

No.428 COLOR FASTNESS RUBBING TESTER
(Gakushin Color Fastness Tester)
JIS K5701-1, K6404-16, K6547, K6772, L0849, (L0862), L1084, P8136, ISO 105-X12, (JASO)
- This tester is used to evaluate the color fastness of textile products, leather, rubber, and plastic against abrasion.
- The operator is to place the test specimen on the round surface and the test specimen is to be abraded with an abrading head which is attached with a white cloth. After the test has been finished, the operator is to judge the degree of color fastness according to the gray scale.
- The tester can also conduct abrasion-resistance tests on paper board and ink coating.
No.428 COLOR FASTNESS RUBBING TESTER（Operation & motion video）
Specification
| Specifications are subject to change without notice. | |
| Hangings | 6 Hangings |
| Specimen | 220 × 30 mm |
| White Cotton Cloth | 50 × 50 mm |
| Weight Load | 1.96 N |
| Abrading Head | R45 mm, 20 × 20 mm |
| Specimen Base | R200 mm, Curved shape (Option: Flat shape) |
| Abrading Distance | 120 mm (100 mm for Flat shape) |
| Abrading Speed | 30 times/min |
| Counter | 9 Digits Preset Counter |
| Option | Additional Weight (4.9 N, 9.8 N) 6 pcs |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W600 × D700 × H450 mm, 70 kg |
