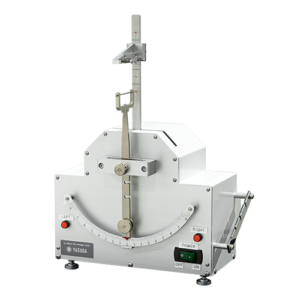

No.311 GURLEY TYPE STIFFNESS TESTER
JIS (L1018), L1085, L1096, TAPPI-T543
- This tester is used to evaluate the stiffness of firm paper, plastic film, and textile according to the Gurley method.
- Attaching the test specimen to the movable arm and rotating it left and right at a prescript speed, the operator is to read the scale when the lower end of the test specimen separates from the pendulum to calculate the stiffness of the test specimen.
Specification
| Specifications are subject to change without notice. | |
| Specime |
|
| Chuck Position | 1/2″, 1″, 1⋅1/2″, 2″, 2⋅1/2″, 3″, 3⋅1/2″, 4″ from Pendulum Top |
| Arm Rotation Speed | 2 rpm |
| Weight | 5 g, 25 g, 50 g, 200 g |
| Load Position | 1″, 2″, 4″ from Pivot |
| Scale RGRG | Left-Right 0 to 8 (Scale 0.2) |
| Power Source | AC 100 V, 1-Phase, 1 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W350 × D200 × H500 mm, 7 kg |
