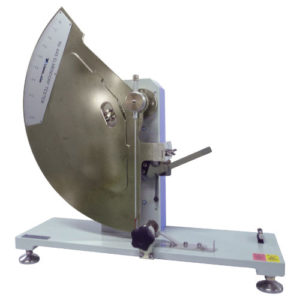

No.445 ELMENDORF TYPE TEARING RESISTANCE TESTER FOR TEXTILE
JIS (K6404-4), K-6404-2, (L1018), (L1085), L1096, ISO 9290
- This tester is used to evaluate tearing resistance of textile, rubber, and plastic film according to the pendulum method.
- Swinging the fan shaped pendulum from a prescript height to tear the test specimen that has been cut beforehand, the operator is to read the workload to calculate the tearing resistance.
Specification
| Specifications are subject to change without notice. | |
| Capacity | 0 to 8 N / 0 to 16 N, 0 to 16 N / 0 to 32 N, 0 to 32 N / 0 to 64 N, 0 to 64 N / 0 to 128 N, (2 ranges) |
| Specimen | W63 ± 1 mm, L100 ± 2 mm |
| Slit Length | 20 mm (Rest 43.0 ± 0.5 mm) |
| Chuck | W45 mm, D16.0 ± 0.5 mm, Spacing 2.8 ± 0.3 mm |
| Option | Digital Display Ver., Air Chuck |
| Dimensions/ Weight (Approx.) | W600 × D200 × H630 mm, 30 kg |
