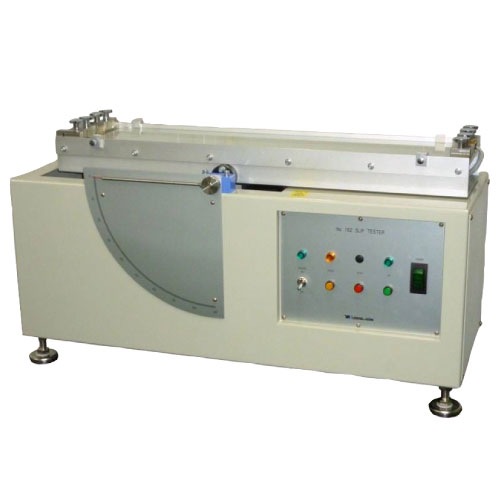

No.162-EW SLIP TESTER (FOR ENAMELED WIRE)
- This tester is used to measure the Inclination Angle(Static Friction Coefficient) when the test specimen of enabled wire starts sliding.
- Fix 2 specimens parallel to one another onto the Sled and Inclination Board.
- Put the tension to 2 specimens on the board. Set the Sled on the Board, making each specimen get crossed when the Angle is 0°.
- Measure the Angle when the Mass starts sliding while the Board gets inclining at a certain speed. Static Friction Coefficient will be calculation as tanθ from the measured Angle.
No.162-EW Specification
| Specifications are subject to change without notice. | ||
|---|---|---|
| Model | No.162-EW | No.162-EWD |
| Sled | W120 mm, L120 mm, Mass 500 g | |
| Inclination Angle | 0 to 90° (Scale 0.2°) | 0 to 90° (Scale 0.2°) ※touch screen display 0.01° |
| Inclination Speed | 1°/s | |
| Option | Changeable Inclination Speed Spec | |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz (Motorized) | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W750 × D270 × H425 mm/ 30 kg | |
Contact Us
For over 70 years, Yasuda Seiki’s testing machines have supported quality control and research & development across various industries, meeting the diverse needs of our clients.
