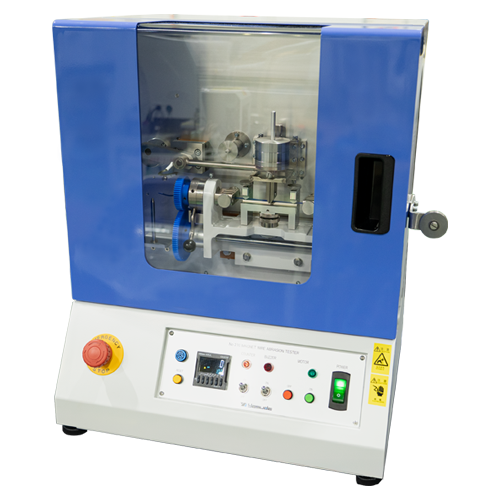

No.210-ISO6722 WIRE ABRASION TESTER
JASO D625-2, ISO 6722-1
- This tester is to evaluate the abrasion resistance of enamel wire according to the blade reciprocating method.
- Abrading the enamel wire back and forth with constant load, the operator is to check the number of reciprocates until the conduction occurs.
- By turning the test sample, one test sample can be tested 3 to 4 times.
This version is compatible with samples with a cross-section under 6 ㎟.
Specification
| Specifications are subject to change without notice. | |
| Model | No.210-ISO6722 （JASO、ISO） |
| Abrading Distance | 15.5 ± 1 mm ( Displacement of Needle 20 ± 1 mm) |
| Abrading Speed | 55 ± 5 times/min |
| Sample Clamp | Distance 71 mm |
| Weight Load | Initial 2 N to Max. 10 N (Standard: 7 ± 0.05 N) |
| Abrading Blade | φ0.45 ± 0.01 mm (JASO) |
| Counter | 6 Digits Preset Counter |
| Sample Rotating Angle | 0°, 90°, 180° and 270° |
| Option | Safety Cover |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W480 × D447 × H600 mm/ 33 kg |
No.210 MAGNET WIRE ABRASION TESTER
(JIS C3003)
- This tester is to evaluate the abrasion resistance of enamel wire according to the blade reciprocating method.
- Abrading the enamel wire back and forth with constant load, the operator is to check the number of reciprocates until the conduction occurs.
- By turning the test sample, one test sample can be tested 3 to 4 times.
Specification
| Specifications are subject to change without notice. | |
| Model | No.210 |
| Abrading Distance | 10 mm |
| Abrading Speed | 60 times/min |
| Sample Clamp | ― |
| Weight Load | Initial 2 N to Max. 10 N |
| Abrading Blade | φ0.4 mm |
| Counter | 6 Digits Preset Counter |
| Sample Rotating Angle | 0°, 120°, 240° |
| Option | Safety Cover |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W480 × D447 × H600 mm, 33 kg |
