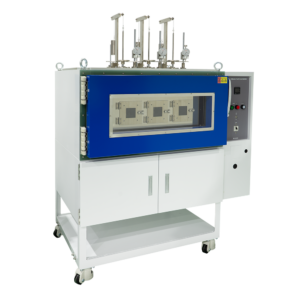

No.185 PARALLEL PLATE PLASTOMETER
JIS C3005, C3307, K6723, ASTM D621
- This tester is to conduct heat deformation tests to rubber and plastic electric insulated wires.
- Placing the test specimen between the parallel plates and adding prescript load and heat for 30 minutes, the operator is to measure the reduction rate in thickness of the test specimen before and after the test has been conducted.
Specification
| Specifications are subject to change without notice. | |
| Model | No.185 PARALLEL PLATE PLASTOMETER |
| Stations | 1, 3, or 5 Stations (3 kinds) |
| Weight Load | Max. 50 N (Dead Weight) |
| Displacement Measurement | Analog Dial Gauge: Scale 1/100 mm Stroke Max. 10 mm (Option: Digital type, Stroke Max. 25 mm) |
| Temperature Range | Max. 200 °C |
| Parallel Plate | φ40 mm (Option: φ3/4″ or φ3/8″ for UL) |
| Accessories | Metal Rod (R 5 mm) |
| Option | Software, Oven Light |
| Power Source | AC 200 V, 1-Phase, 15 to 30 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | 1 Station W780 × D825 × H1,800 mm/ 142 kg 3 Stations W1,250 × D1,120 × H1,800 mm/ 286 kg |
No.185-AUTO PARALLEL PLATE PLASTOMETER (AUTOMATIC)
JIS C3005, C3307, K6723, ASTM D621
- This tester is to conduct heat deformation tests to rubber and plastic electric insulated wires.
- Placing the test specimen between the parallel plates and adding prescript load and heat for 30 minutes, the operator is to measure the reduction rate in thickness of the test specimen before and after the test has been conducted.
- The operator is to set the pre-heating time and the testing time on the touch panel, and then the tester will load, unload, and show and print the test data automatically.
Specification
| Specifications are subject to change without notice. | |
| Model | No.185-AUTO PARALLEL PLATE PLASTOMETER (AUTOMATIC) |
| Stations | 3 or 5 Stations (2 kinds) |
| Weight Load | Max. 20 N (Dead Weight) |
| Displacement Measurement | Differential Transducer: Scale 1/100 mm, Stroke Max. 50 mm TouchPanel Display |
| Temperature Range | Max. 200 °C |
| Parallel Plate | φ40 mm (Option: φ3/4″ or φ3/8″ for UL) |
| Accessories | Metal Rod (R 5 mm) |
| Option | Software, Oven Light |
| Power Source | AC 200 V, 1-Phase or 3-Phase, 15 to 30 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | 1 Station W1,280 × D880 × H1,800 mm/ 343 kg 3 Stations W1,420 × D880 × H1,800 mm/ 375 kg |
