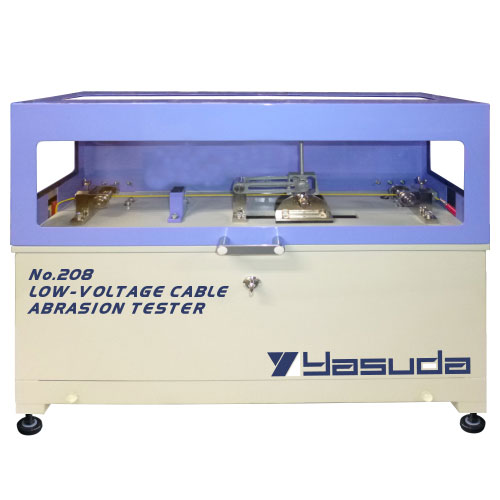

No.208 LOW-VOLTAGE CABLE ABRASION TESTER FOR AUTOMOBILE
JIS C3406, JASO, ISO 6722
- This tester is to evaluate the abrasion resistance of low voltage cables for automobiles according to the abrading tape method.
- Attaching the test specimen so that it touches the abrading tape and then the operator is to abrade the test specimen with the abrading tape at a prescript speed.
- The abrasion resistance value that is acquired by this method will be the length that the abrading tape abraded before the electric conductor touches the abrading tape.
Specification
No.208（JIS）
| Specifications are subject to change without notice. | |
| Model | No.208（JIS） |
| Specimen | L900 mm |
| Weight | Top R114 mm, Initial 450 g, 1,350 g, 1,900 g |
| Electrode | φ7 mm |
| Abrasive Tape | Material A, Grit #180, Conductive Pitch 150 mm, Conduction W10 mm |
| Tape Speed | 1,500 mm/min |
| Specimen Rotating Angle | ― |
| Counter | 6 Digits Preset Counter |
| Accessories | Abrasive Tape: 5 pcs |
| Power Source | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Dimension/ Weight (Approx.) | Tester Body: W620 × D400 × H510 mm, 50 kg Control Box: W200 × D420 × H315 mm, 10 kg W620 × D300 × H500 mm, 70 kg(LT) |
No.208-JASO
| Specifications are subject to change without notice. | |
| Model | No.208-JASO |
| Specimen | L1 m |
| Weight | Top R114 mm, Initial 0.63 ± 0.05 N Additional Weight 50 to 1,500 g |
| Electrode | φ6.9 mm |
| Abrasive Tape | Material A, Grit #180, Conductive Pitch 150 mm, Conduction W10 mm |
| Tape Speed | 1,500 ± 75 mm/min |
| Specimen Rotating Angle | 0°, 90°, 180°, 270° |
| Counter | 6 Digits Preset Counter |
| Accessories | Abrasive Tape: 5 pcs |
| Power Source | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Dimension/ Weight (Approx.) | Tester Body: W620 × D400 × H510 mm, 50 kg Control Box: W200 × D420 × H315 mm, 10 kg W620 × D300 × H500 mm, 70 kg(LT) |
No.208-ISO6722
| Specifications are subject to change without notice. | |
| Model | No.208-ISO6722 |
| Specimen | L1 m |
| Weight | Top R114 mm, Initial 0.63 ± 0.05 N Additional Weight 50 to 1,500 g |
| Electrode | φ6.9 mm |
| Abrasive Tape | Material A, Grit #180, Conductive Pitch 75 mm, Conduction W10 mm |
| Tape Speed | 1,500 ± 75 mm/min |
| Specimen Rotating Angle | 0°, 90°, 180°, 270° |
| Counter | 6 Digits Preset Counter |
| Accessories | Abrasive Tape: 5 pcs |
| Power Source | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Dimension/ Weight (Approx.) | Tester Body: W620 × D400 × H510 mm, 50 kg Control Box: W200 × D420 × H315 mm, 10 kg W620 × D300 × H500 mm, 70 kg(LT) |
